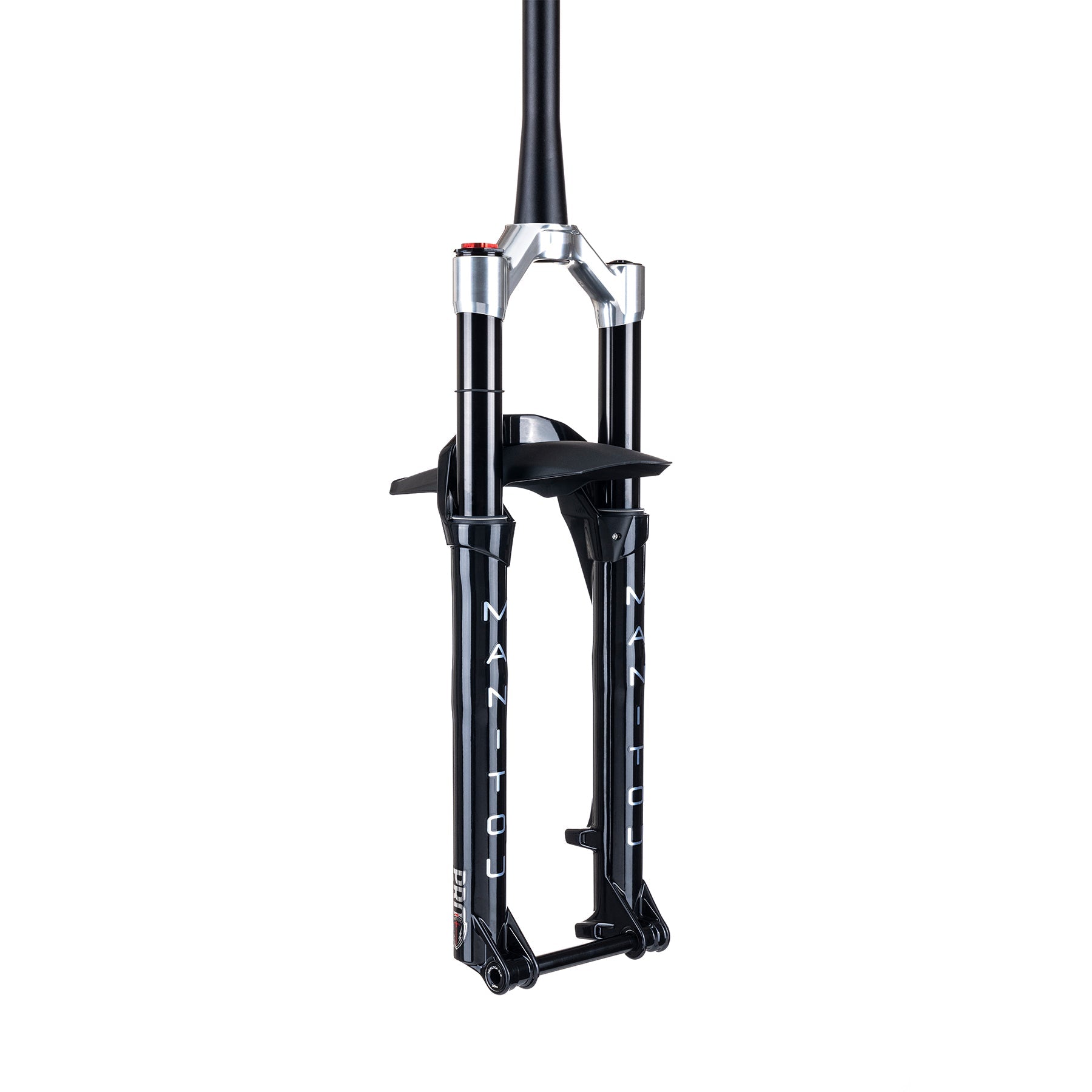

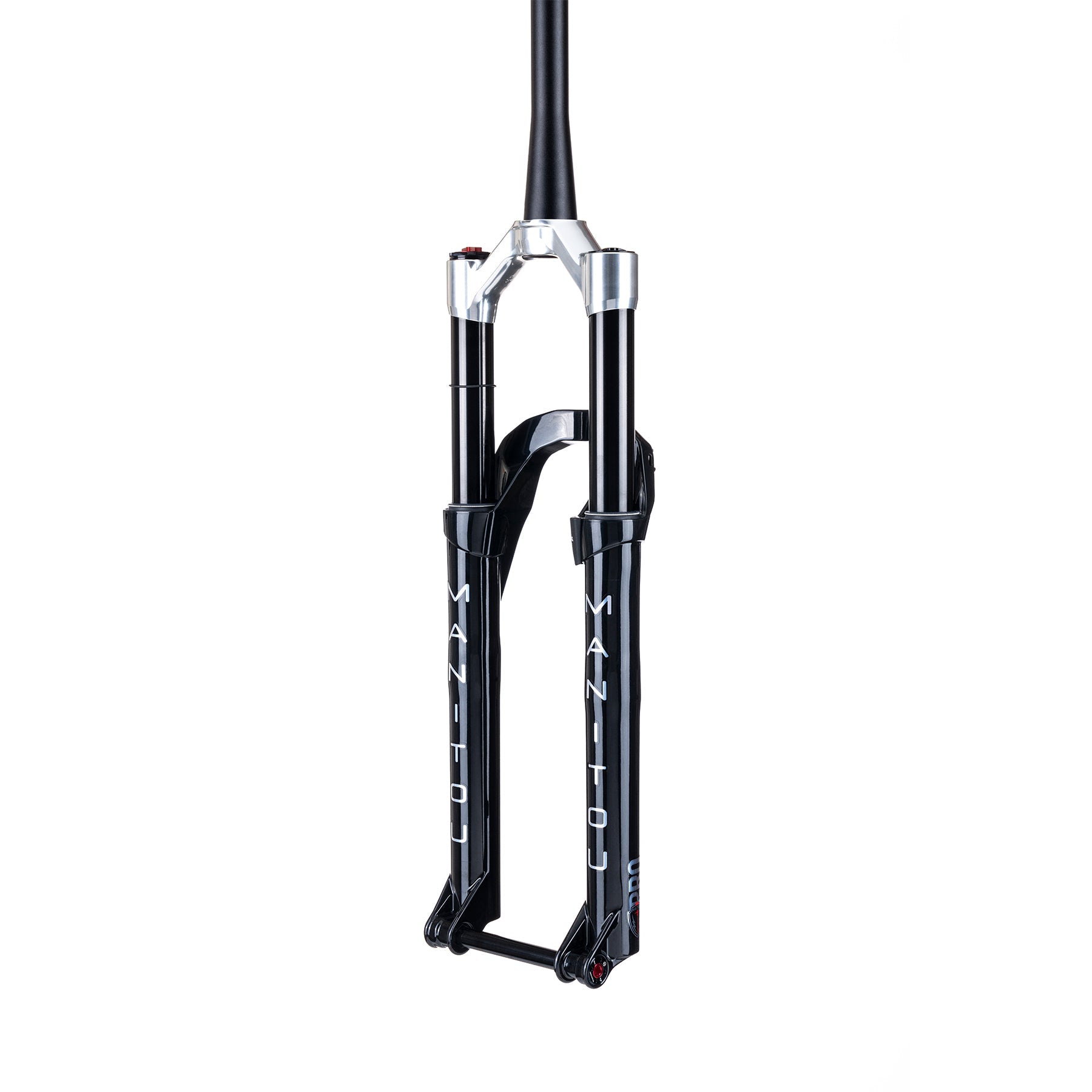

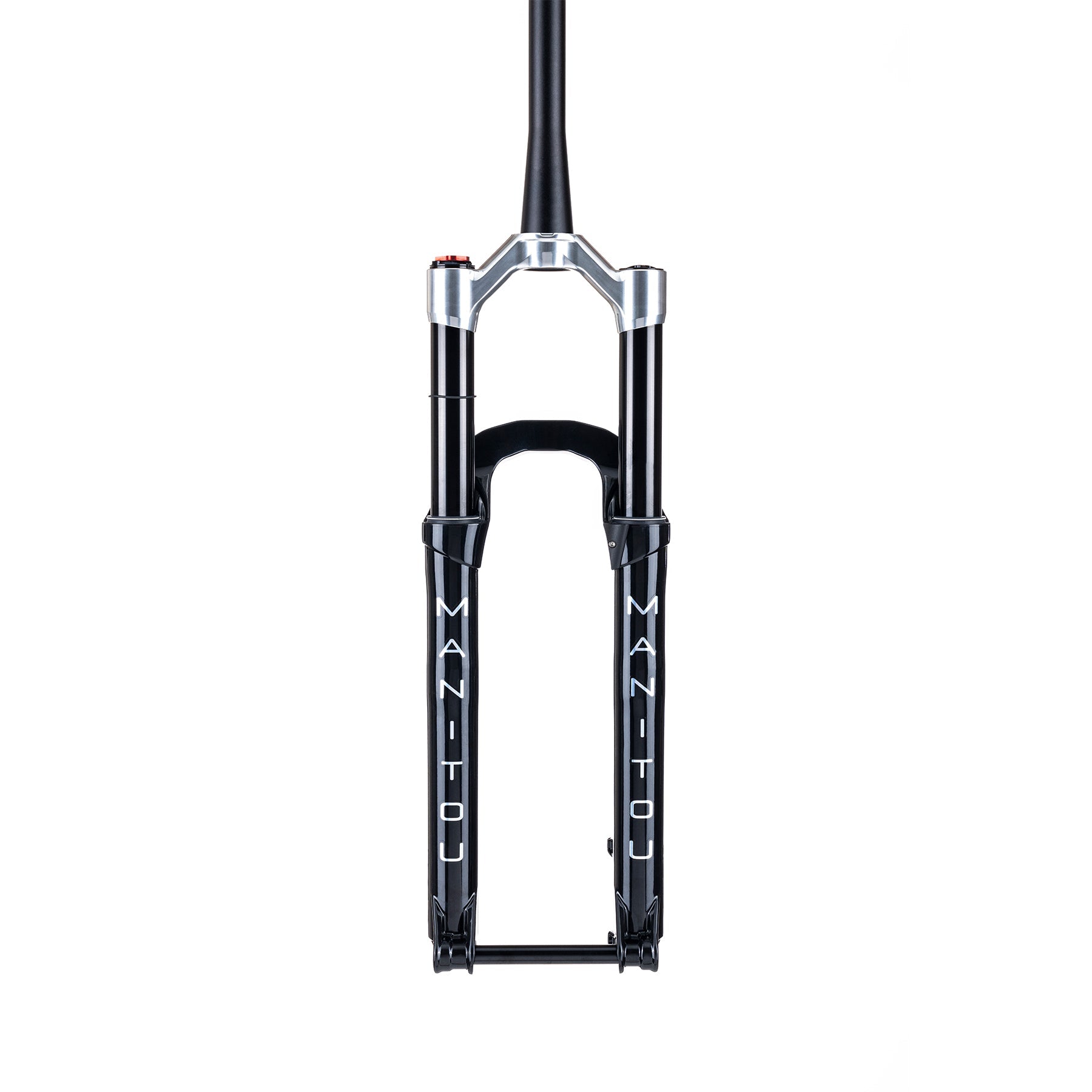

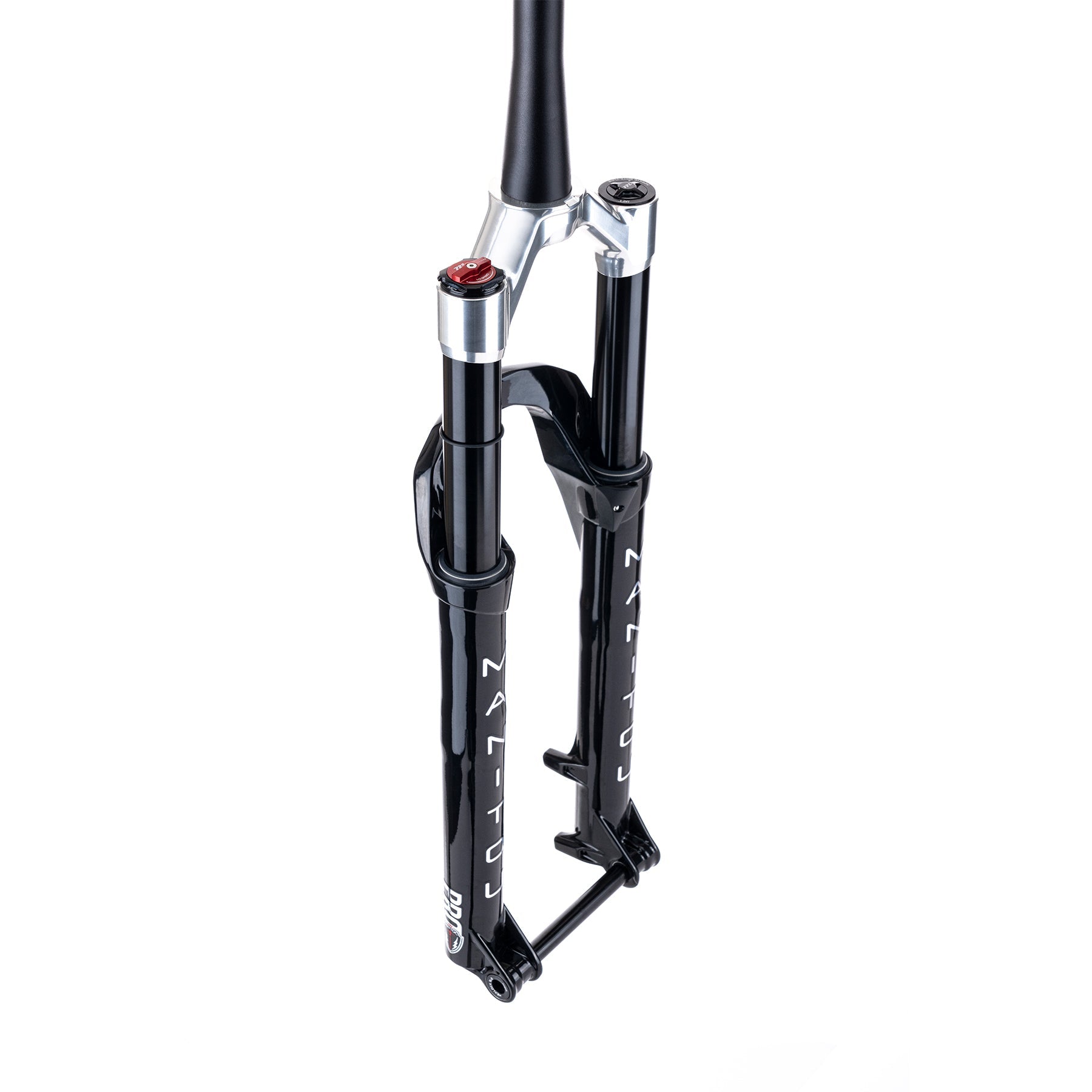

Mattoc Pro 29" Suspension Fork, 140mm, 44mm Offset, 15x110mm Boost


The Mattoc is the fruit of one of the most profound development cycles in Manitou history. Capable of pulling duty in disciplines ranging from XC to light enduro, the Mattoc Pro is light, stiff and highly tunable. At 1750 grams it is a featherweight solution given its wide travel range.

The Dorado Air spring with IRT allows an extremely lightweight build with suspension performance derived from Manitou's top-of-the-line DH fork. Compression damping via MC2 Sealed Cartridge with HBO technology and a sealed TPC damper for rebound. Adjustable Air, IRT, Rebound, High and Low Speed compression.

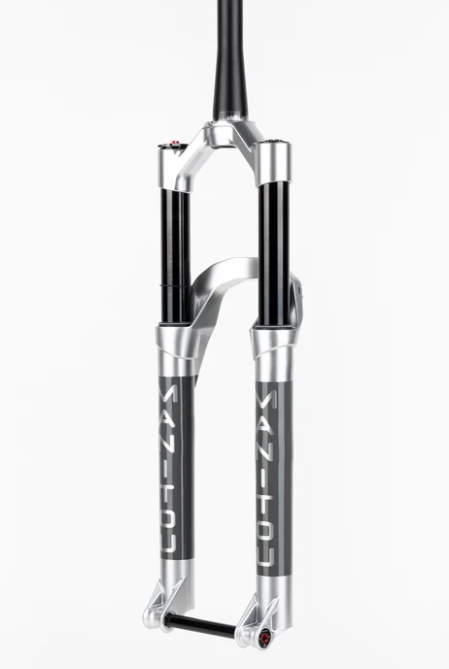

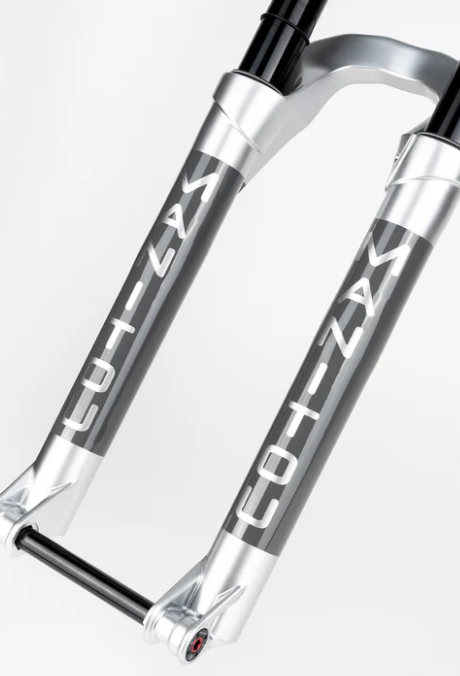

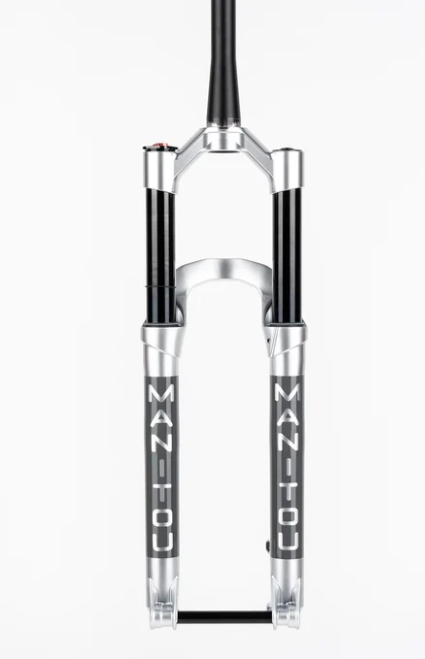

Limited Edition: the Mattoc Pro LE borrows its iconic look from 1992 with the same 2024 technology, 34mm stanchions and 29" wheel package. Configured to 140mm out of the box; travel spacers are included to adjust internally from 110 to 150mm.

See full details
SKU: MAN-191-38187-A002
$1,500.00 CAD
$1,500.00 CAD
Wheel Size: 29''
Edition: Standard, Gloss Black
! INFO

We work hard to keep every price accurate and up to date, though it may occasionally change without notice based on product availability. Full details in our policy.

On order from our supplier

On order with our supplier After checkout, we will email you the estimated arrival date. If you would like to confirm the date before placing your order, simply message us in the chat. Either way, you will have all the information you need to make the decision that works best for you.

Manitou Mattoc Pro 29" Suspension Fork, 140mm, 44mm Offset, 15x110mm Boost

Vendor: Manitou

Mattoc Pro 29" Suspension Fork, 140mm, 44mm Offset, 15x110mm Boost

$1,500.00

Vendor: Manitou

Mattoc Pro 29" Suspension Fork, 140mm, 44mm Offset, 15x110mm Boost

$1,500.00
Wheel Size: 29''
Edition: Standard, Gloss Black

The Mattoc is the fruit of one of the most profound development cycles in Manitou history. Capable of pulling duty in disciplines ranging from XC to light enduro, the Mattoc Pro is light, stiff and highly tunable. At 1750 grams it is a featherweight solution given its wide travel range.

The Dorado Air spring with IRT allows an extremely lightweight build with suspension performance derived from Manitou's top-of-the-line DH fork. Compression damping via MC2 Sealed Cartridge with HBO technology and a sealed TPC damper for rebound. Adjustable Air, IRT, Rebound, High and Low Speed compression.

Limited Edition: the Mattoc Pro LE borrows its iconic look from 1992 with the same 2024 technology, 34mm stanchions and 29" wheel package. Configured to 140mm out of the box; travel spacers are included to adjust internally from 110 to 150mm.

Specifications

  • Wheel Size: 29"
  • Travel: 140mm out of the box, internally adjustable 110-150mm
  • Weight: 1750g
  • Offset: 44mm
  • Ride Height (29"): 110mm = 522 a2c, 120mm = 532 a2c, 130mm = 542 a2c, 140mm = 552 a2c, 150mm = 562 a2c
  • Spring: Dorado Air with Infinite Rate Tune (IRT)
  • Compression Damping: Sealed Cartridge TPC+ with Hydraulic Bottom Out (HBO)
  • Rebound Damping: Sealed Damper TPC
  • Adjustments: Air, IRT, Rebound, HS and LS Compression
  • Steerer: 1.5" Tapered
  • Crown: Forged Aluminum, Hollow Bore
  • Leg Diameter: 34mm
  • Leg Material: 7000 Series Butted Wall Aluminum
  • Brake: Post Mount 160mm
  • Axle: 15mm x 110mm Hexlock
  • Max Tire Size: 67mm
  • Options: Fender Kit, TSR, Hexlock SL2
  • E-Bike Compatible: Yes

Manufacturer Part Numbers

  • Standard: 191-38187-A002
  • Limited Edition: 191-38187-A012

Documentation (PDF and guides)
