Drew 24 Kids Full Suspension Mountain Bike

SKU: LAH-DREW-24
$3,999.00 CAD
$3,999.00 CAD
! INFO
On order from our supplier

On order with our supplier After checkout, we will email you the estimated arrival date. If you would like to confirm the date before placing your order, simply message us in the chat. Either way, you will have all the information you need to make the decision that works best for you.

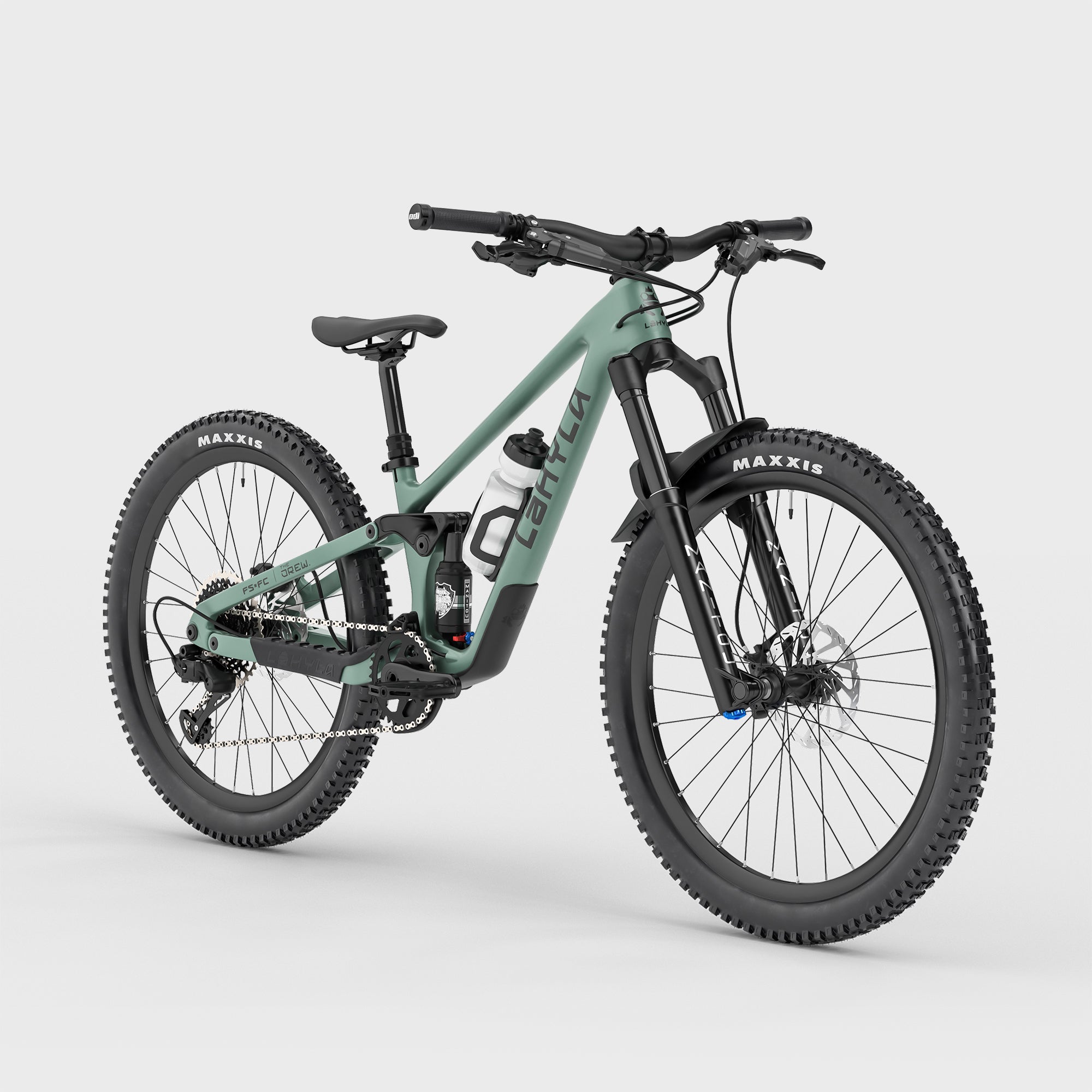

Lahyla Drew 24 full carbon kids full suspension mountain bike, front three-quarter view

Vendor: Lahyla

Drew 24 Kids Full Suspension Mountain Bike

$3,999.00

Vendor: Lahyla

Drew 24 Kids Full Suspension Mountain Bike

$3,999.00

Full carbon, full suspension mountain bike built for kids 7 to 9 years old (115 to 135 cm). Geometry, kinematics and parts are sized for light riders, not shrunk from an adult bike.

  • Full carbon frame, four-bar suspension, 120 / 115 mm Manitou travel
  • Low 26 cm bottom bracket and narrow 155 mm Q-factor
  • Short 127 mm cranks and 90 mm dropper post
  • SRAM NX 1x11, Tektro hydraulic brakes with junior short reach levers
  • 10.9 kg / 24.5 lb without pedals

Why it rides better

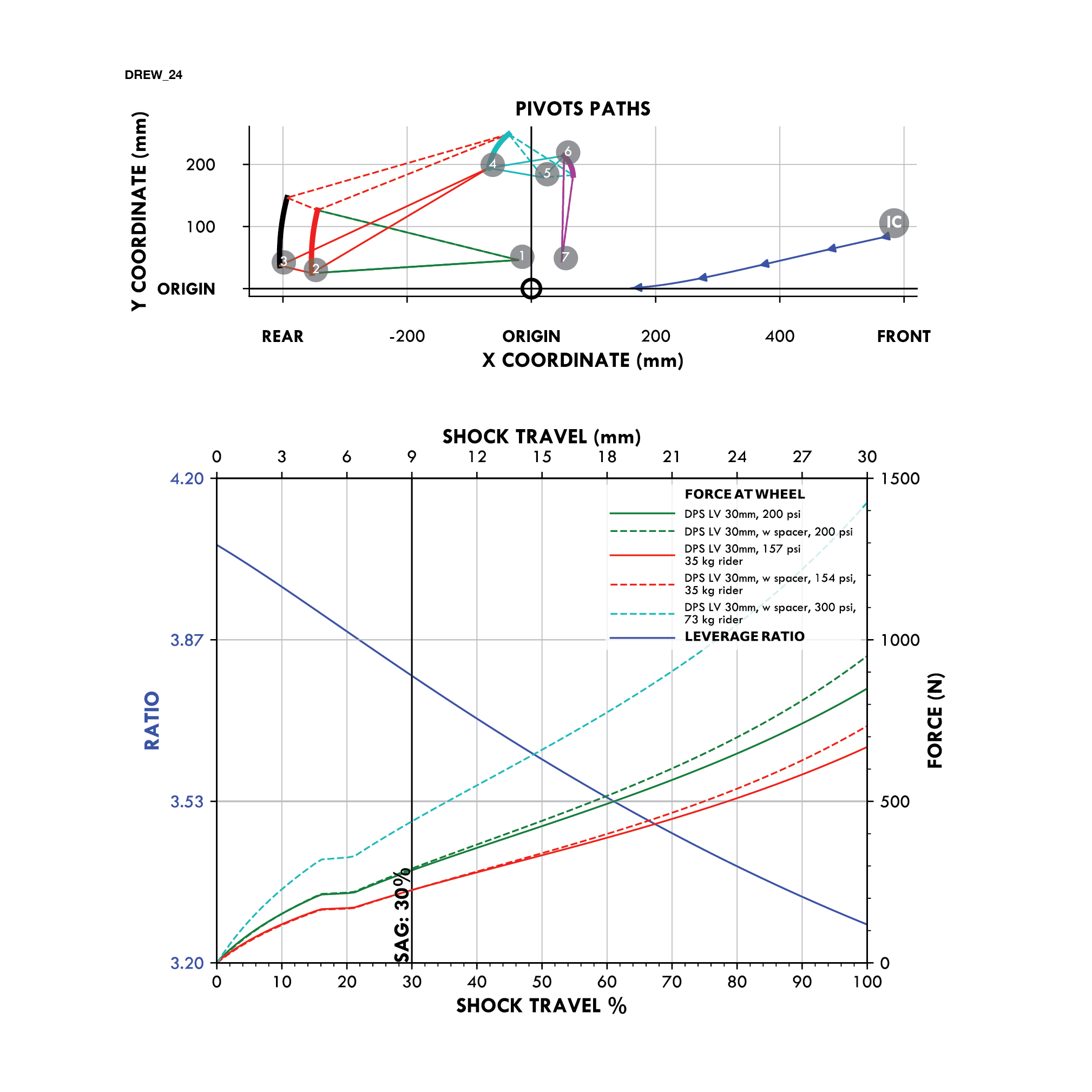

A leverage ratio made for light riders lets the suspension move on small bumps, and the low bottom bracket keeps the centre of gravity down for confidence. Near 135 cm and growing fast? Compare with the Drew Mullet 26x24. Full build and frame details are in the Catalogue / Specifications tab.

Suspension setup by B1keparts

We service and build the Lahyla fleet. Tell us your child's weight and we set pressure, sag and rebound before shipping.

Complete the kit: helmets, protection, apparel, pedals and parts.

Drew 24 vs Drew Mullet 26x24

Drew 24Drew Mullet 26x24
Rider height115 to 135 cm135 to 156 cm
Typical age7 to 99 to 12
Wheels24 in front and rear26 in front, 24 in rear
Travel (front / rear)120 / 115 mm140 / 135 mm
ForkManitou JUNIT Comp 24Manitou JUNIT 34 Expert 26
ShockManitou Mara 170 x 30Manitou Mara 190 x 40
TiresMaxxis Rekon 24 x 2.2Maxxis Minion DHF 26 x 2.5 / DHR II 24 x 2.3
Cranks127 mm140 mm
Dropper90 mm, 27.2120 mm, 30.9
Brake rotors160 / 160 mm180 / 160 mm
Weight (no pedals)10.9 kg / 24.5 lb12.5 kg / 27.5 lb
Price$3,999 CAD$4,199 CAD

Build

FrameFull carbon fiber
Wheel size24 in
ForkManitou JUNIT Comp 24 in, 120 mm
Rear shockManitou Mara 170 x 30 mm, 115 mm travel
Front hubFormula DC-711, 32H, 6-bolt disc, 15 x 110 mm thru axle, sealed bearings
Rear hubFormula DHT-14211, 32H, 6-bolt, 12 x 142 mm thru axle, HG freehub
RimsJalco JD200 Plus 24 in, 25 mm internal width, tubeless ready
TiresMaxxis Rekon 24 x 2.2, foldable, 60 TPI
BrakesTektro hydraulic disc, short reach junior 2-finger levers
RotorsTektro anti-vibration 160 mm, 1.8 mm
ShifterSRAM NX 11-speed X-Actuation trigger
Rear derailleurSRAM NX 1x11
CassetteSRAM PG 11-speed, 11-42T
ChainKMC X11
CranksetSamox forged alloy, 127 mm, direct mount narrow-wide 30T steel chainring
Bottom bracketSamox 73 mm BSA, sealed cartridge bearings, external alloy cups
Chain guideISCG05 mount
HandlebarSDG Slater Jr, 650 mm, 19 mm rise
StemJD CNC, 35 mm extension, 31.8 mm clamp
GripsSDG Slater Jr
HeadsetNeco CNC AL7075 ZeroStack
SaddleVelo JR, 234 x 132 mm, steel rails
Dropper postJD alloy 6061-T6, 27.2 mm, 90 mm travel
Weight (no pedals)10.9 kg / 24.5 lb

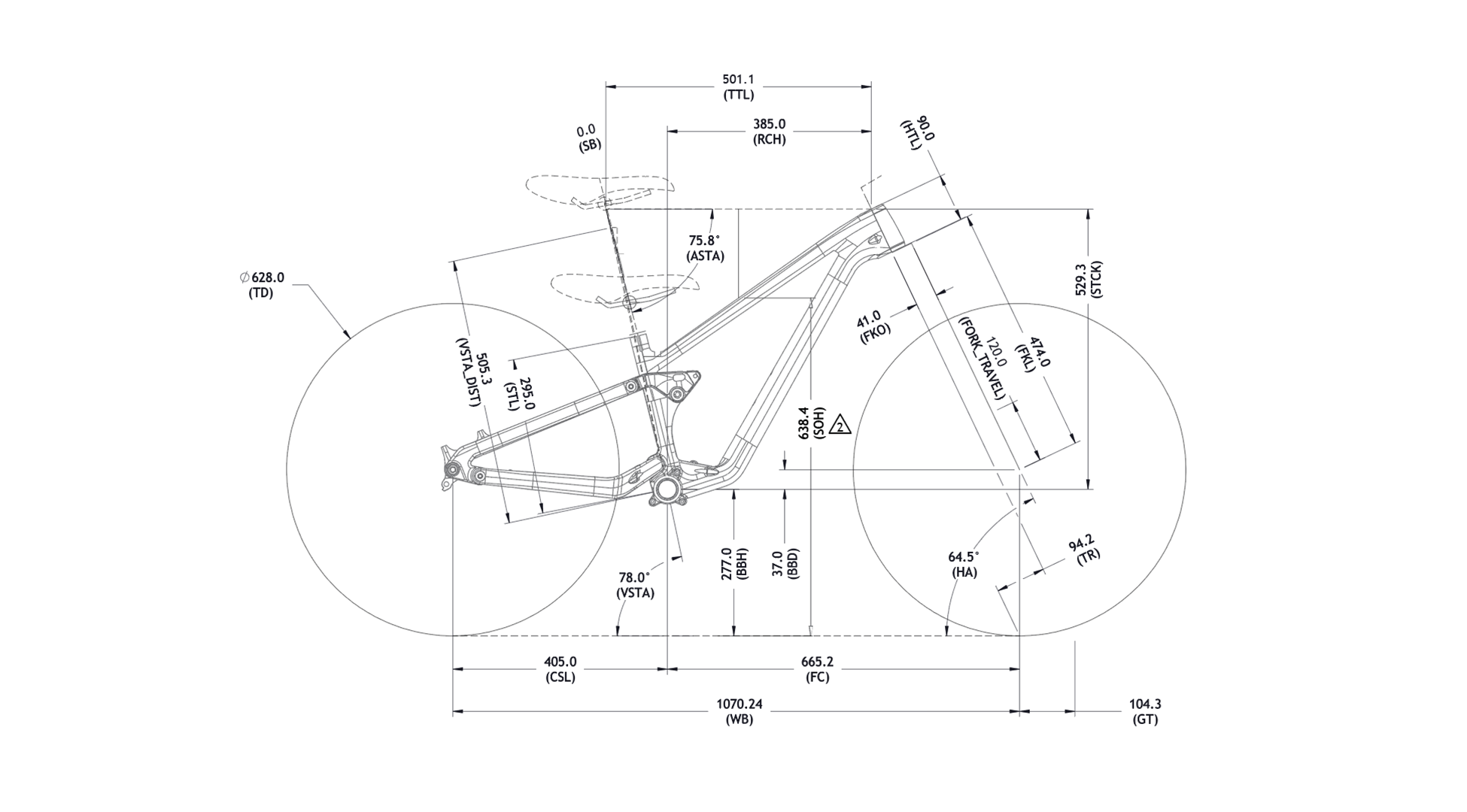

Frame specs

Suspension designFour-bar
Max tire size24 x 2.35
Fork offset / axle-to-crown42 mm / 474 mm
Steerer1 1/8 to 1 1/2 in tapered
Headset standardZS44/28.6 / EC56/40
Shock size170 x 30 mm
Shock hardwareUpper 8 x 35 / lower 8 x 25
BB standard68/73 mm BSA threaded, ISCG05
Max crank length127 mm
Seatpost / clamp27.2 mm / 31.8 mm
Rear axleRockShox Maxle Stealth M12 x 1.0, 171.5 mm, 142 x 12 mm
Derailleur mountSRAM UDH
Max speeds11
Rear brake mountPost mount 140 mm (160 mm with adapter)
Front rotor160 mm
Bottle cage mount1

Frame

A frame designed for youth riders: agility and pedalling efficiency.

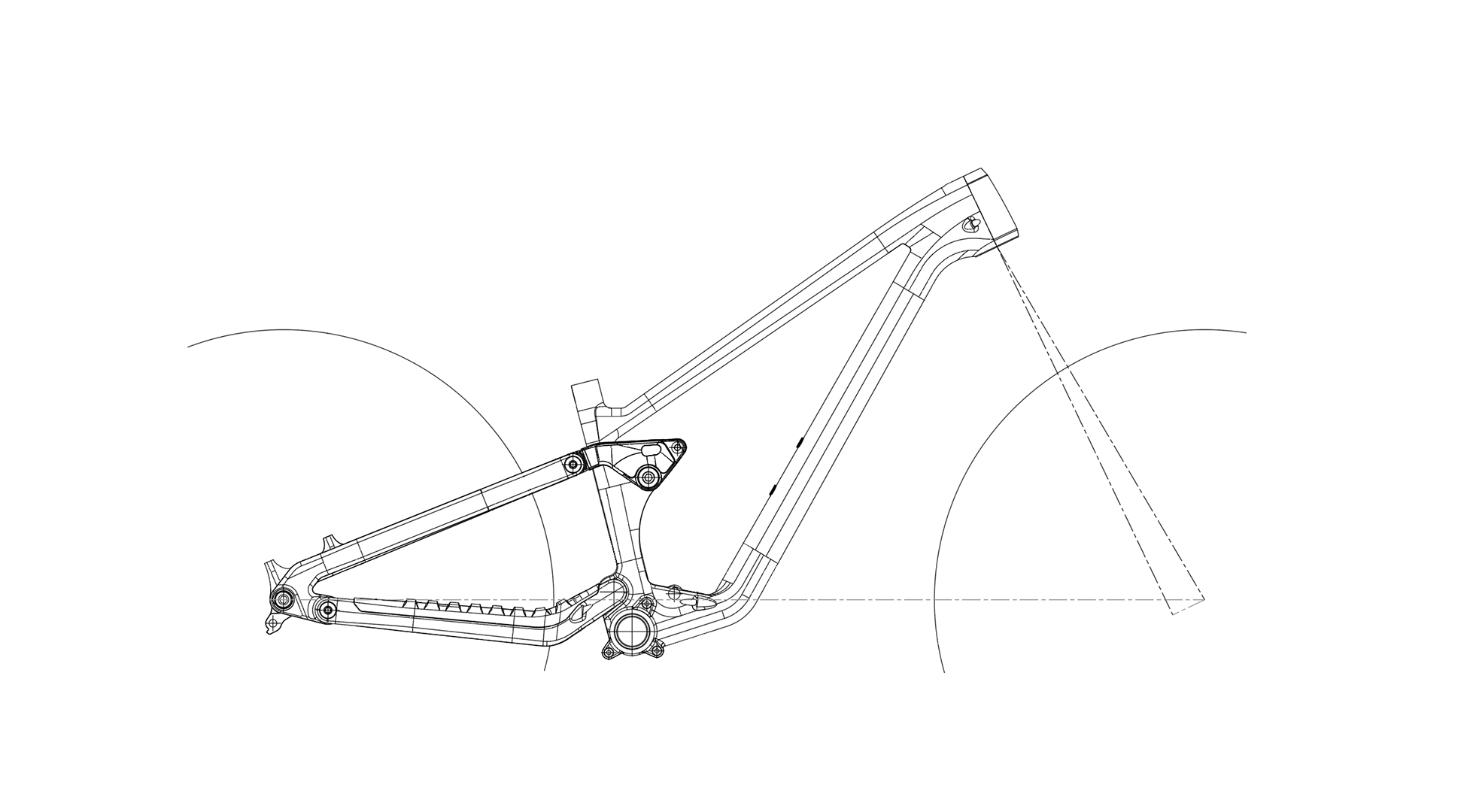

Lahyla Drew 24 carbon frame specifications

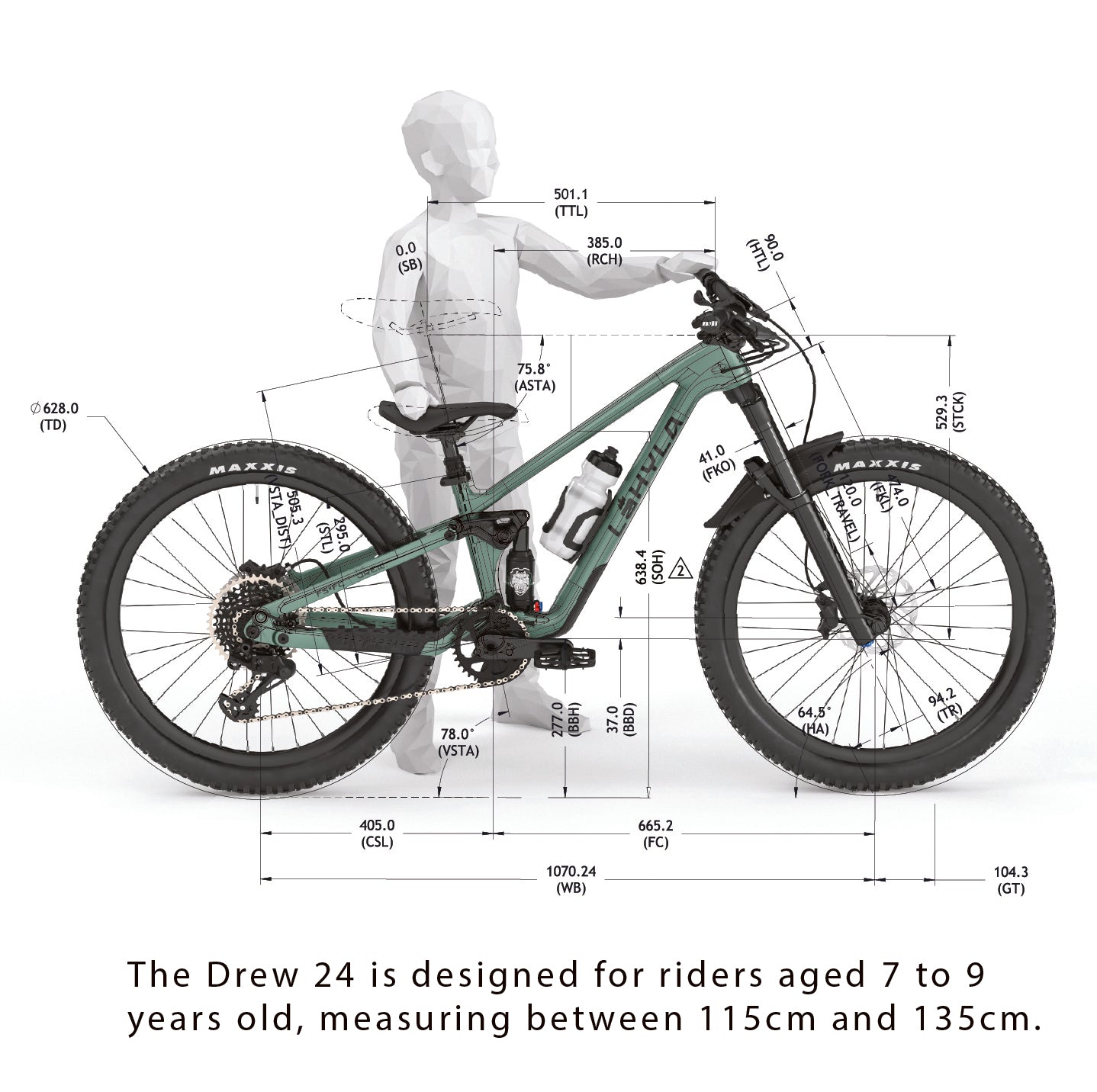

What size kid fits the Lahyla Drew 24?

The Drew 24 is designed for riders about 115 to 135 cm tall, usually 7 to 9 years old. If your child is near 135 cm and still growing, compare it with the Drew Mullet 26x24 (135 to 156 cm).

Is the Drew 24 too much bike for a beginner?

No. The low 26 cm bottom bracket, short 127 mm cranks and 90 mm dropper make it easy to put a foot down and gain confidence. The suspension is tuned for light riders, so it works at low speeds as well as in the bike park.

Is the frame really full carbon?

Yes. Front and rear triangles are full carbon fiber with a four-bar suspension layout. The complete bike weighs 10.9 kg (24.5 lb) without pedals.

Can you set up the suspension for my child's weight?

Yes. B1keparts sets up and services the Manitou fork and shock for the Lahyla fleet. Tell us your child's weight and riding style and we set pressures, rebound and sag before it ships. Questions: chat with us or call (418) 570-2153.

Does it come with pedals and a dropper post?

Yes. It ships with pedals, a 90 mm dropper post, downtube and chainstay protection, internal cable routing guides and an ISCG05 chain guide mount.

Which helmet and protection should go with it?

For trail and bike park riding we recommend a full face or trail helmet plus knee pads. See our kids helmets and kids protection.

Got the wrong items or it’s just not what you expected? No sweat! You can send it back within 30 days of delivery.

To be eligible for restocking, the product must also meet the following conditions:

  • The product must be in its original packaging without any price or promotional stickers.
  • The outer box must be in perfect reselling condition without any writings.
  • The product must be intact and in the same condition as when originally purchased, with no installation or use.
  • The product must not have been purchased at a clearance price.

Swaps

Need to swap out your item? Here’s how:

Speedy Exchange

Want your new item right away? Place a new order, and we’ll ship it before receiving the return. Your card will be charged for the new order, and we’ll refund the old one as soon as we get it back.

Standard Exchange

Send back the item you don’t want, and we’ll ship your new order once we receive the return. We’ll only charge (or refund) the difference in price.

Sale Items

Items on sale with a 20% discount or more are final sale and can’t be returned or exchanged. Consider selling these items locally, like on Kijiji.

Complete details here : https://www.b1keparts.com/policies/refund-policy

From Quebec, to your doorstep, expect a smooth ride with no surprise fees like duties or brokerage. We ship within 1 to 4 days. More than 80% of orders arrive in 2 days or less. Need it faster? Let us know, and we’ll pedal extra hard for express service.

For purchases of $149 and over with items weighing less than 25 lbs, shipping is free. For oversized items or items weighing between 25 and 100 lbs, an additional shipping fee will apply based on the specific case.

Features

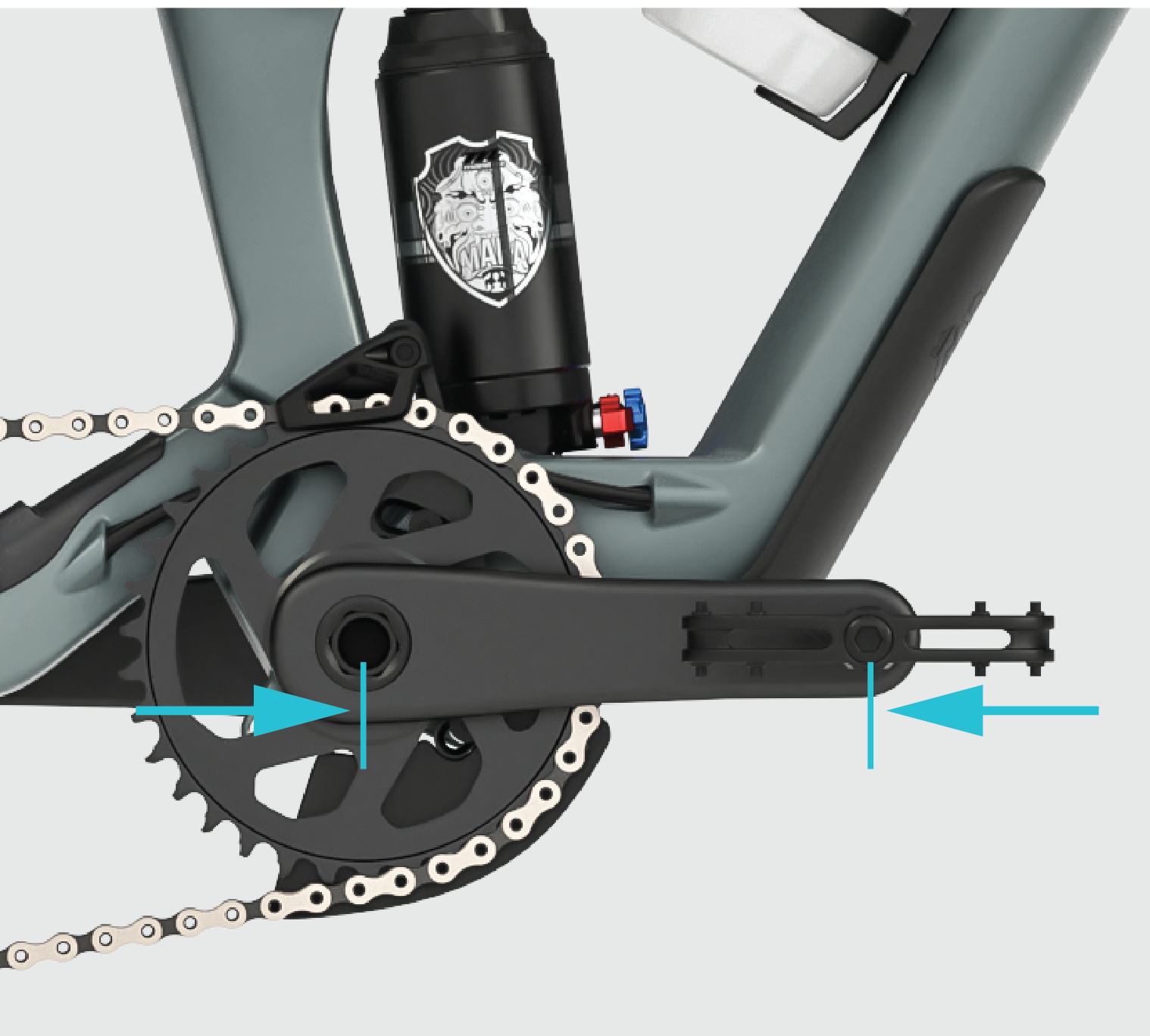

Lahyla Drew 24 : Shortest crank armsShortest crank arms
1

127 mm cranks, the shortest in the category, for more pedalling efficiency.

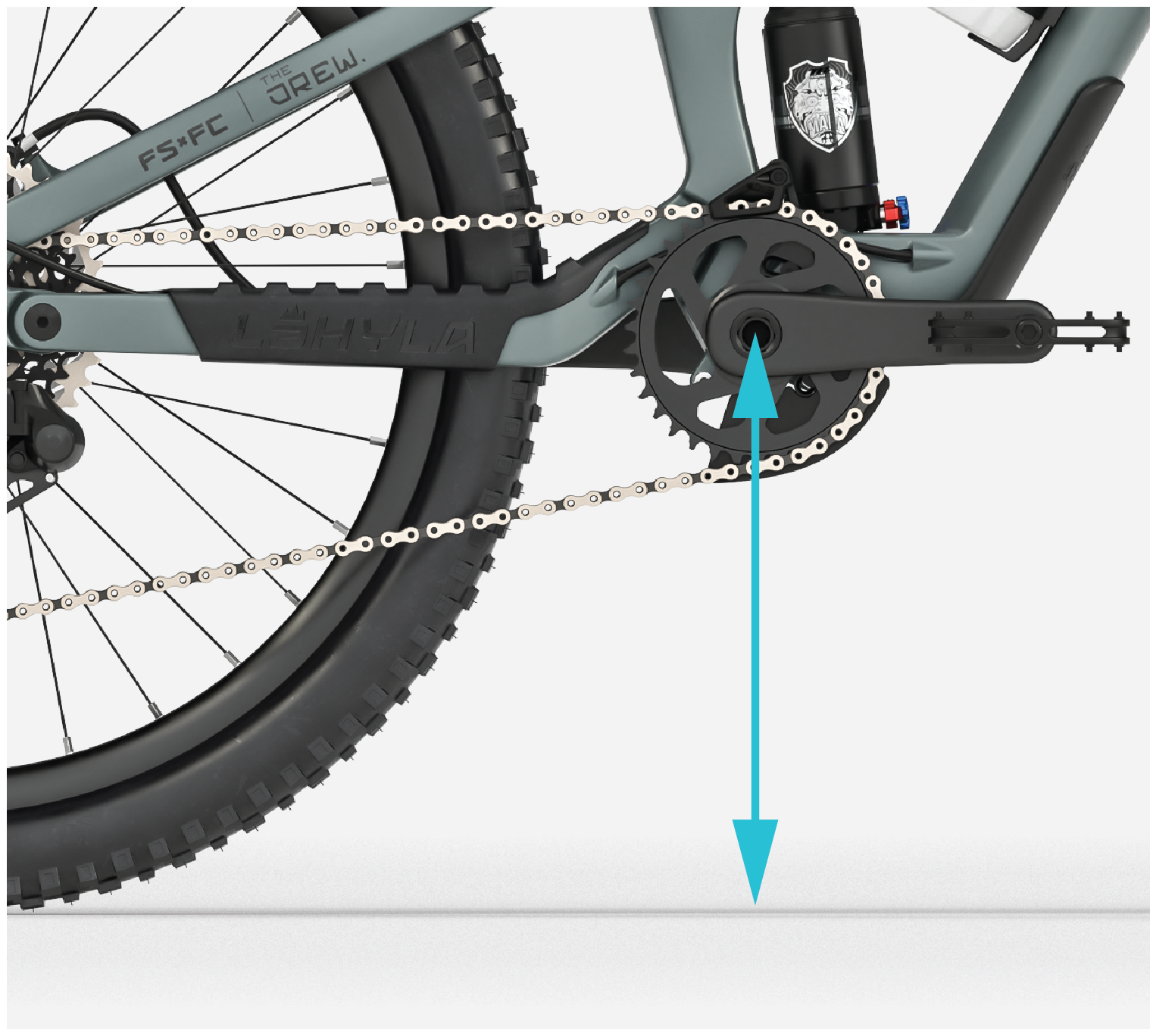

Lahyla Drew 24 : Lower centre of gravityLower centre of gravity
2

It is not only about making it easier for your child to put a foot down. A 26 cm bottom bracket lowers the centre of gravity for more stability and confidence, where many youth full suspension bikes sit around 31 cm.

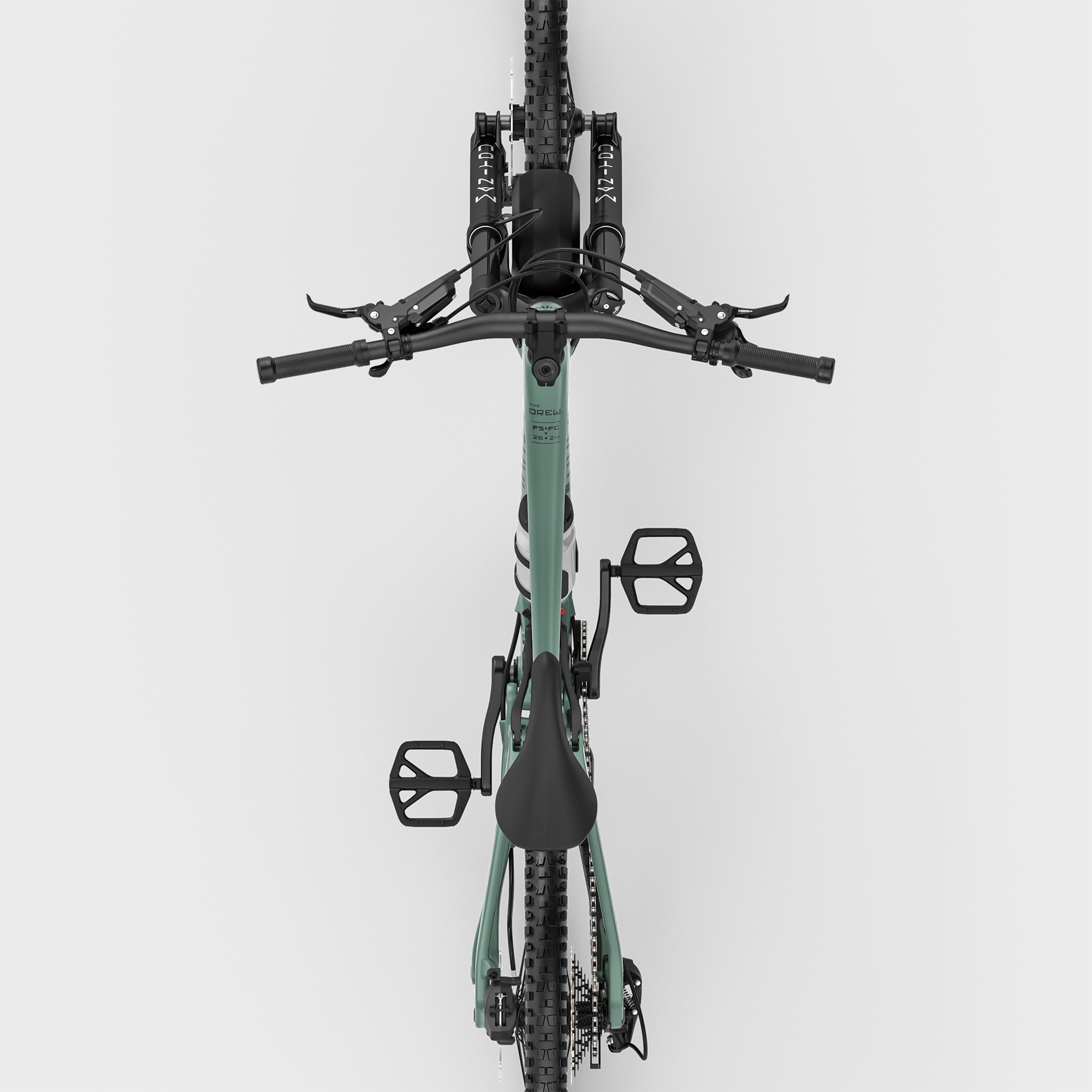

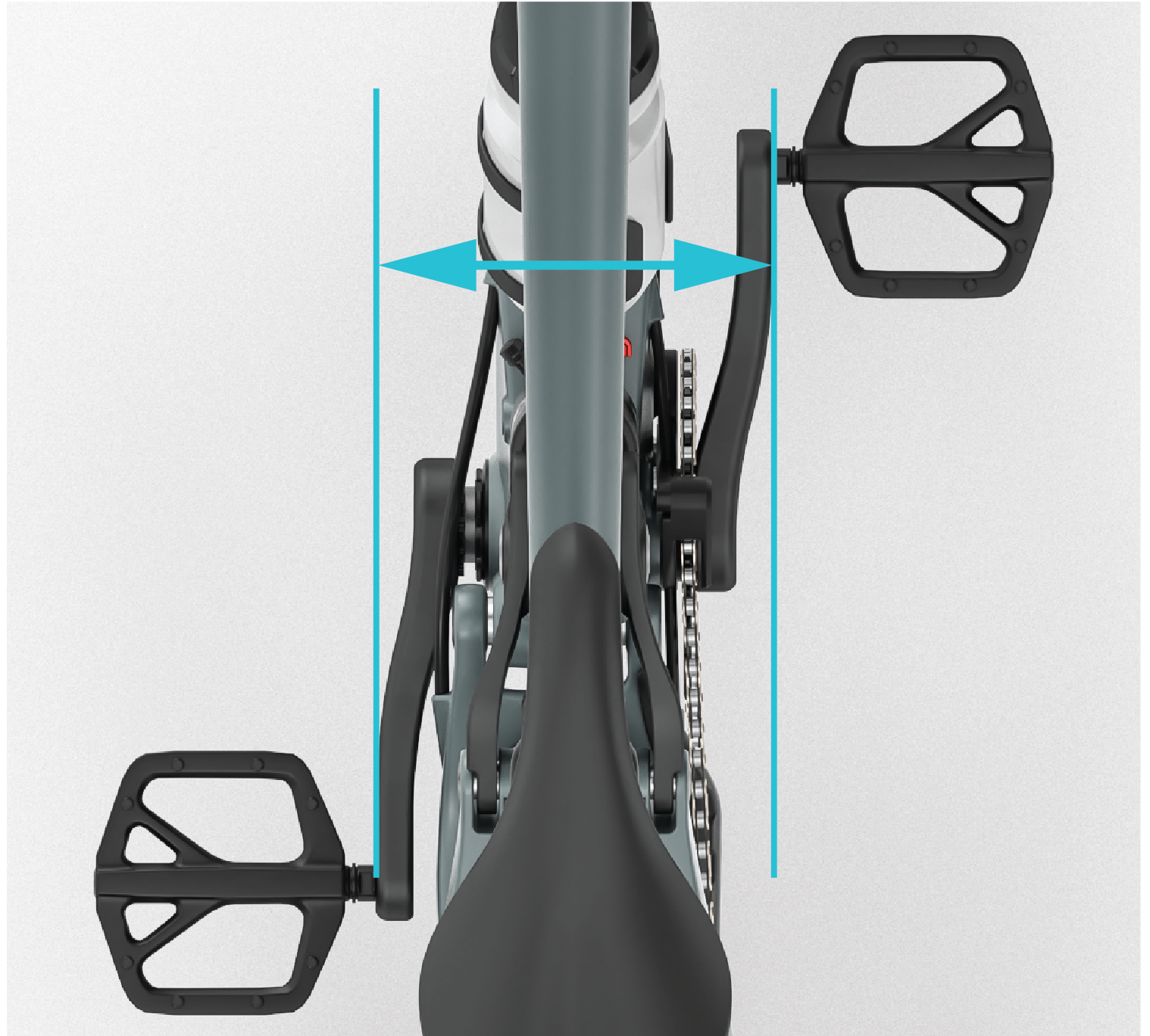

Lahyla Drew 24 : The narrowest Q-factorThe narrowest Q-factor
3

The pedal spacing (Q-factor) is 155 mm, compared with 175 mm or more on many youth full suspension bikes. It takes a specific chainstay design and tube geometry.

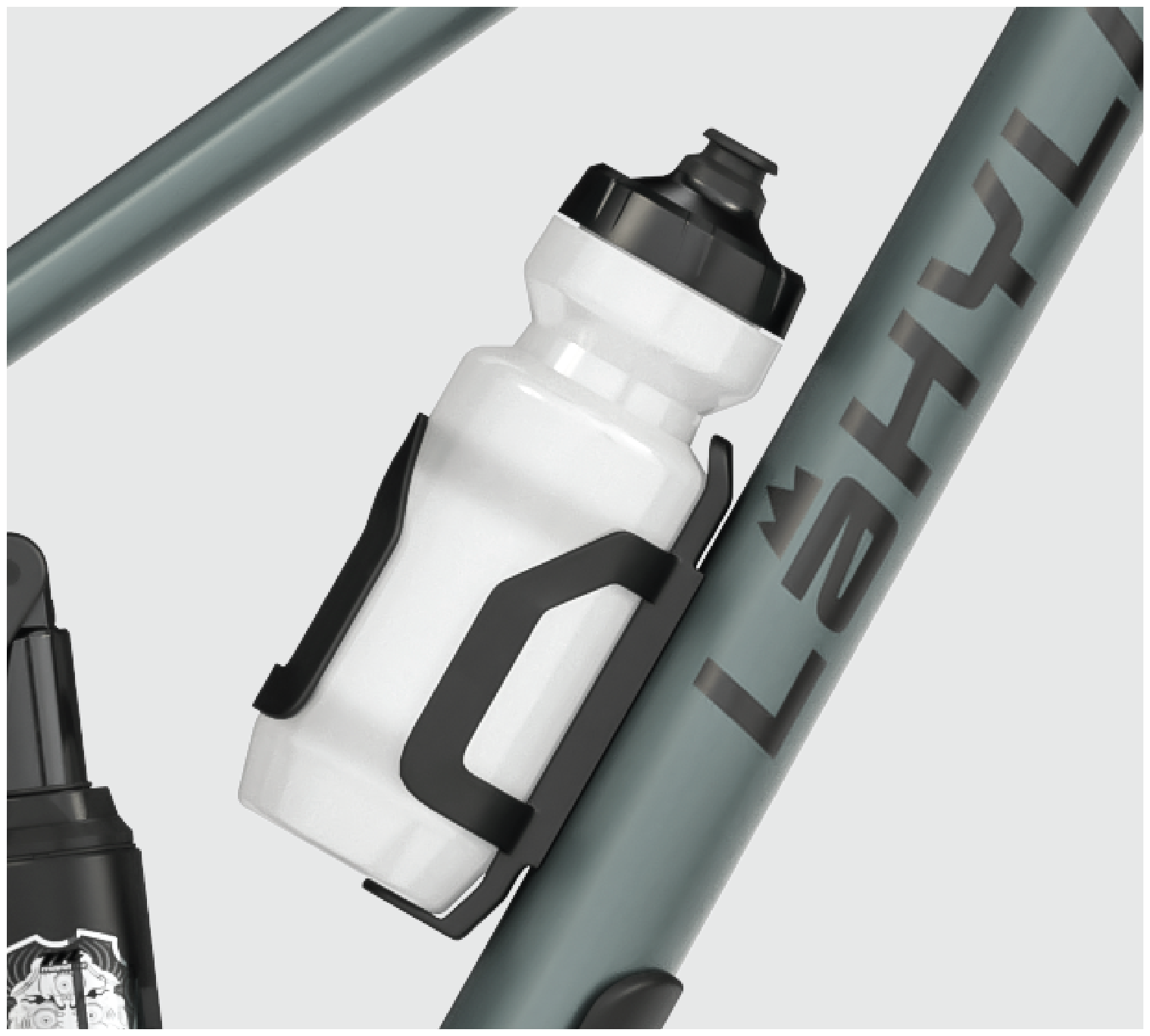

Lahyla Drew 24 : Bottle mountBottle mount
4

Hydration matters, and kids do not like wearing water packs. The best place for the water is the lowest point on the frame, for more stability and comfort.

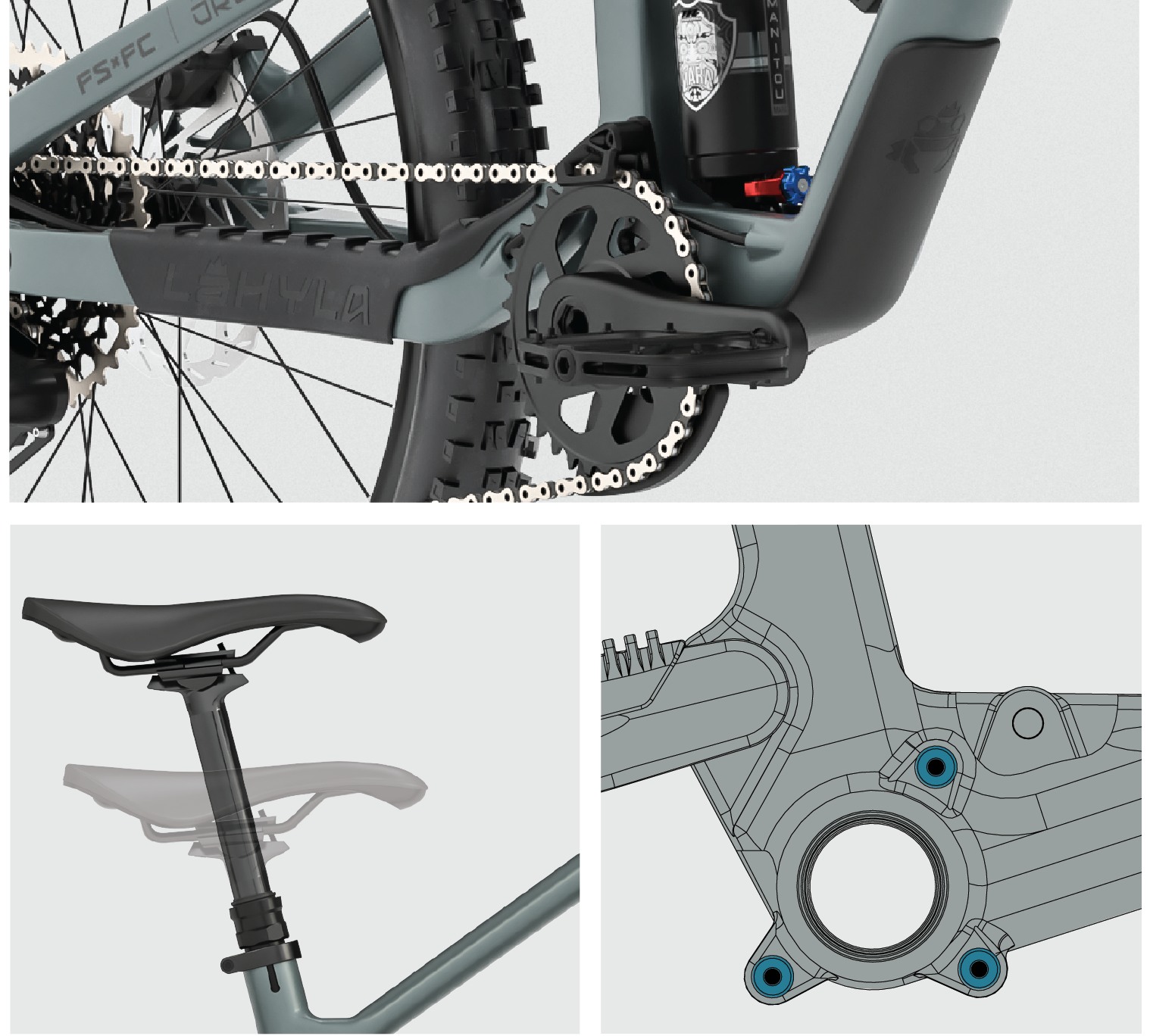

Lahyla Drew 24 : Ready to shredReady to shred
5

Fully equipped with youth specific parts: 90 mm dropper post, downtube and chainstay protection, internal cable routing guides, pedals and ISCG05 mount.

Lahyla Drew 24 : LightweightLightweight
6

Full carbon frame and 10.9 kg / 24.5 lb without pedals: among the lightest bikes in its category.
