Drew Mullet 26x24 Kids Full Suspension Mountain Bike

SKU: LAH-DREW-2426
$4,199.00 CAD
$4,199.00 CAD
! INFO
On order from our supplier

On order with our supplier After checkout, we will email you the estimated arrival date. If you would like to confirm the date before placing your order, simply message us in the chat. Either way, you will have all the information you need to make the decision that works best for you.

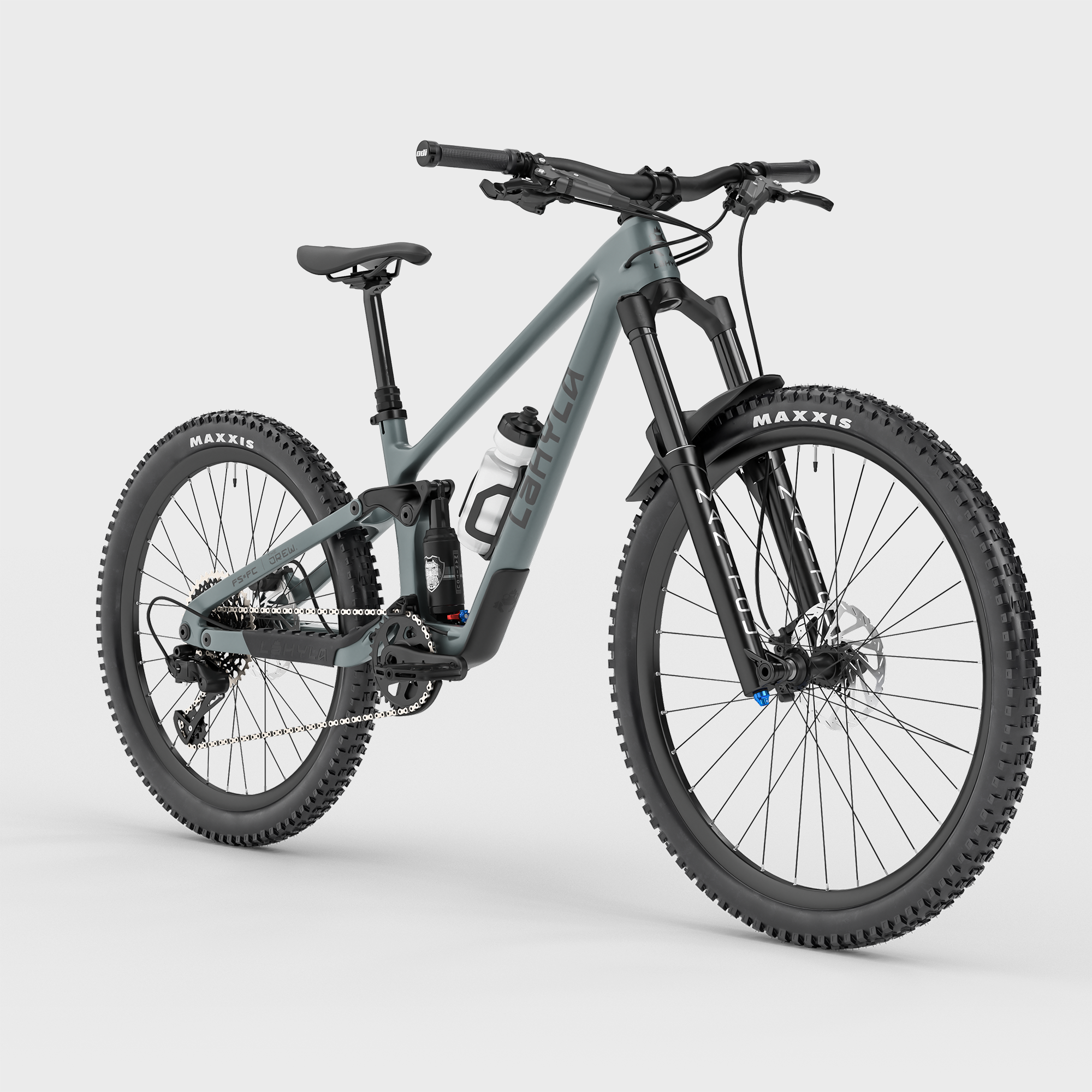

Lahyla Drew Mullet 26x24 full carbon kids full suspension mountain bike, front three-quarter view

Vendor: Lahyla

Drew Mullet 26x24 Kids Full Suspension Mountain Bike

$4,199.00

Vendor: Lahyla

Drew Mullet 26x24 Kids Full Suspension Mountain Bike

$4,199.00

Full carbon, full suspension trail bike for kids 9 to 12 years old (135 to 156 cm). Mullet wheels, 140 mm of travel and Maxxis Minion tires for steep trails, rock gardens and the bike park.

  • Full carbon frame, four-bar suspension, 140 / 135 mm Manitou travel
  • 26 in front, 24 in rear, tubeless ready
  • Low 26 cm bottom bracket and narrow 155 mm Q-factor
  • 140 mm cranks, 120 mm dropper, SRAM NX 1x11, Tektro 180 / 160 mm brakes
  • 12.5 kg / 27.5 lb without pedals

Why the mullet works for kids

The 26 inch front rolls over roots and rocks, the 24 inch rear keeps the bike short and playful. The Bike Dads called it “one of the best rear suspension designs/kinematics for kids we have tried” (review). Smaller riders: see the Drew 24. Full build and frame details are in the Catalogue / Specifications tab.

Suspension setup by B1keparts

We service and build the Lahyla fleet. Tell us your child's weight and we set the fork and shock before shipping.

Complete the kit: helmets, protection, apparel, pedals and parts.

Drew Mullet 26x24 vs Drew 24

Drew 24Drew Mullet 26x24
Rider height115 to 135 cm135 to 156 cm
Typical age7 to 99 to 12
Wheels24 in front and rear26 in front, 24 in rear
Travel (front / rear)120 / 115 mm140 / 135 mm
ForkManitou JUNIT Comp 24Manitou JUNIT 34 Expert 26
ShockManitou Mara 170 x 30Manitou Mara 190 x 40
TiresMaxxis Rekon 24 x 2.2Maxxis Minion DHF 26 x 2.5 / DHR II 24 x 2.3
Cranks127 mm140 mm
Dropper90 mm, 27.2120 mm, 30.9
Brake rotors160 / 160 mm180 / 160 mm
Weight (no pedals)10.9 kg / 24.5 lb12.5 kg / 27.5 lb
Price$3,999 CAD$4,199 CAD

Build

FrameFull carbon fiber
Wheel sizeMullet: 26 in front / 24 in rear
ForkManitou JUNIT 34 Expert 26 in, 140 mm
Rear shockManitou Mara 190 x 40 mm, 135 mm travel
Front hubFormula DC-711, 32H, 6-bolt disc, 15 x 110 mm thru axle, sealed bearings
Rear hubFormula DHT-14211, 32H, 6-bolt, 12 x 142 mm thru axle, HG freehub
RimsJalco JD200 Plus, 26 in front / 24 in rear, 25 mm internal width, tubeless ready
Front tireMaxxis Minion DHF 26 x 2.5, Dual Compound, EXO, tubeless ready
Rear tireMaxxis Minion DHR II 24 x 2.3, Dual Compound, EXO, tubeless ready
BrakesTektro hydraulic disc, short reach junior 2-finger levers
RotorsTektro anti-vibration, 180 mm front / 160 mm rear, 1.8 mm
ShifterSRAM NX 11-speed X-Actuation trigger
Rear derailleurSRAM NX 1x11
CassetteSRAM PG 11-speed, 11-42T
ChainKMC X11
CranksetSamox forged alloy, 140 mm, direct mount narrow-wide 30T steel chainring
Bottom bracketSamox 73 mm BSA, sealed cartridge bearings, external alloy cups
Chain guideISCG05 mount

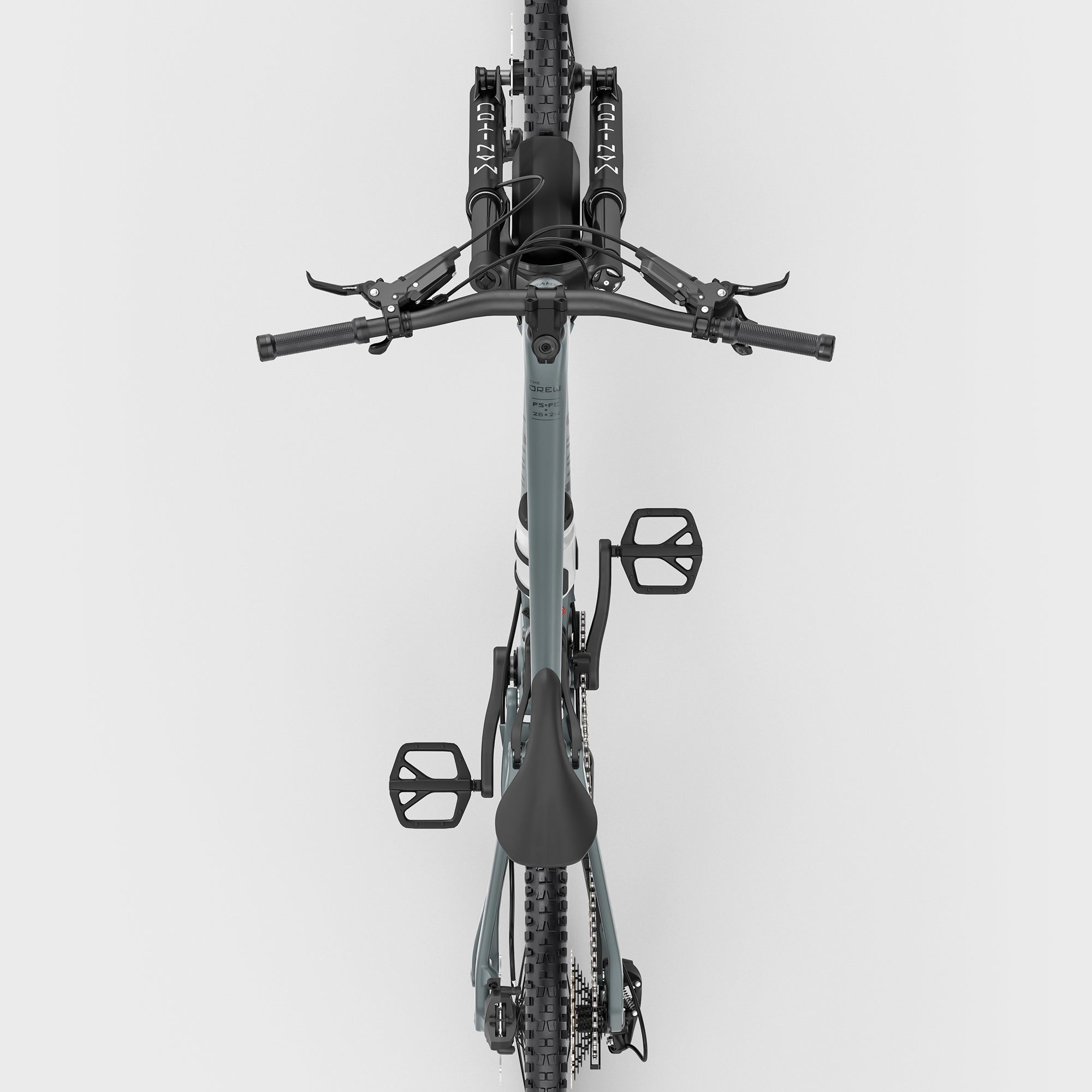

HandlebarJD 6061-T6, 730 mm, 22 mm rise, 9° back / 5° up, 31.8 mm
StemJD CNC, 45 mm extension, 31.8 mm clamp
GripsVelo 28 x 122 mm, single-side alloy lock ring
HeadsetNeco CNC AL7075 ZeroStack
SaddleVelo JR, 234 x 132 mm, steel rails
Dropper postJD alloy 6061-T6, 30.9 mm, 120 mm travel
Weight (no pedals)12.5 kg / 27.5 lb

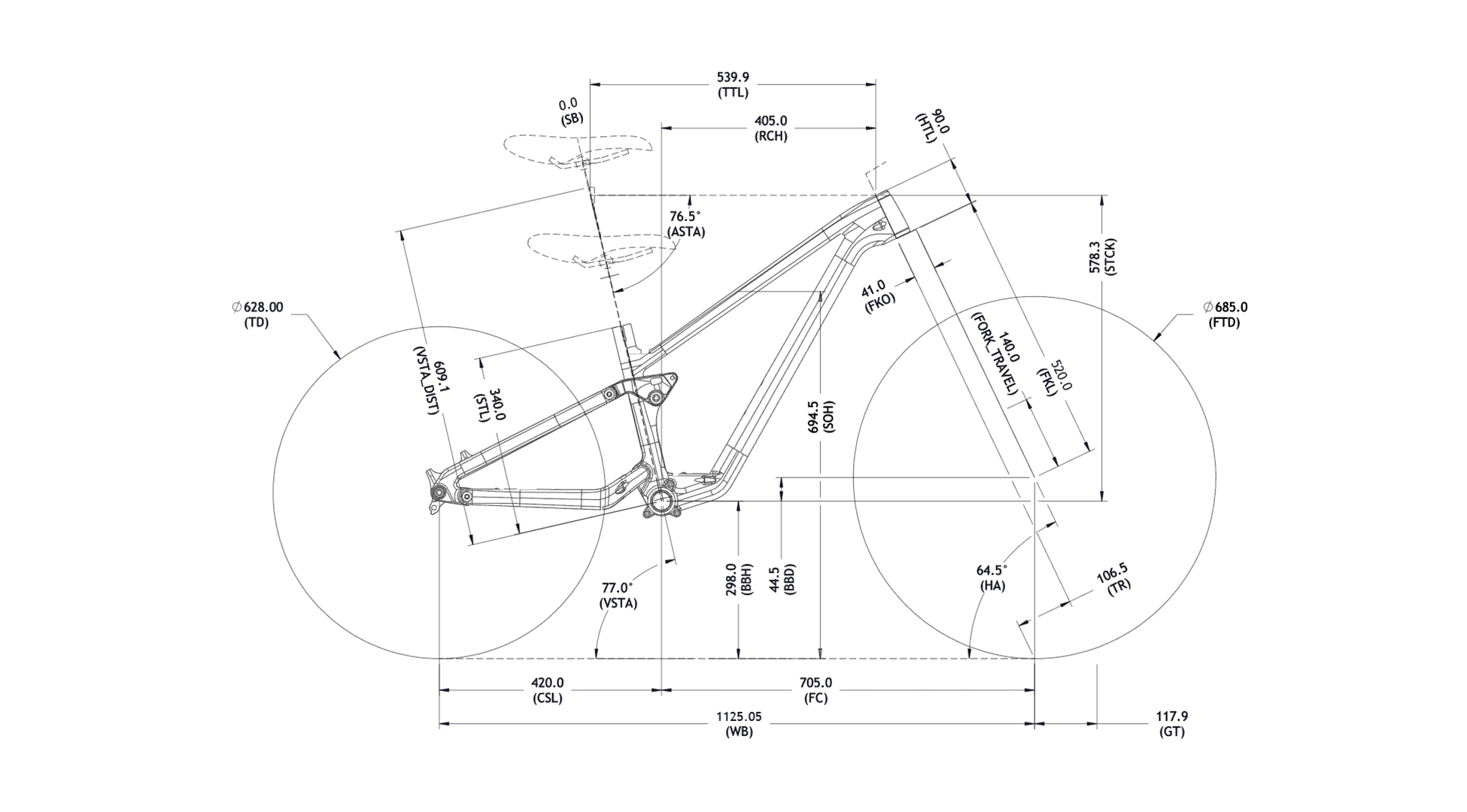

Frame specs

Suspension designFour-bar
Max tire size26 x 2.5 front / 24 x 2.35 rear
Fork offset / axle-to-crown41 mm / 520 mm
Steerer1 1/8 to 1 1/2 in tapered
Headset standardZS44/28.6 / EC56/40
Shock size190 x 40 mm
Shock hardwareUpper 8 x 35 / lower 8 x 25
BB standard68/73 mm BSA threaded, ISCG05
Max crank length140 mm
Seatpost / clamp30.9 mm / 36 mm
Rear axleRockShox Maxle Stealth M12 x 1.0, 171.5 mm, 142 x 12 mm
Derailleur mountSRAM UDH
Max speeds11
Rear brake mountPost mount 140 mm (160 mm with adapter)
Front rotor180 mm
Bottle cage mount1

Frame

A frame designed for youth riders: agility and pedalling efficiency.

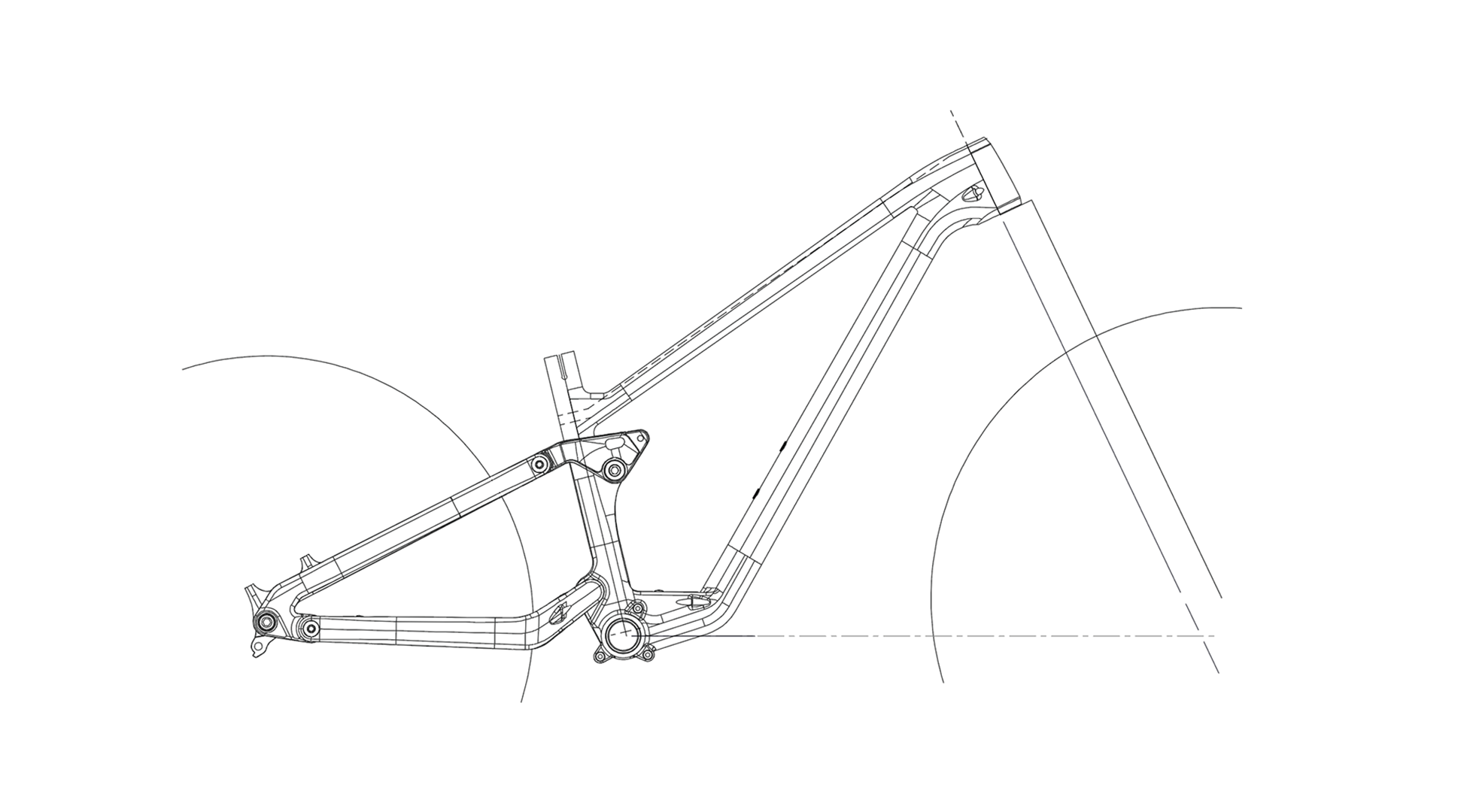

Lahyla Drew Mullet 26x24 carbon frame specifications

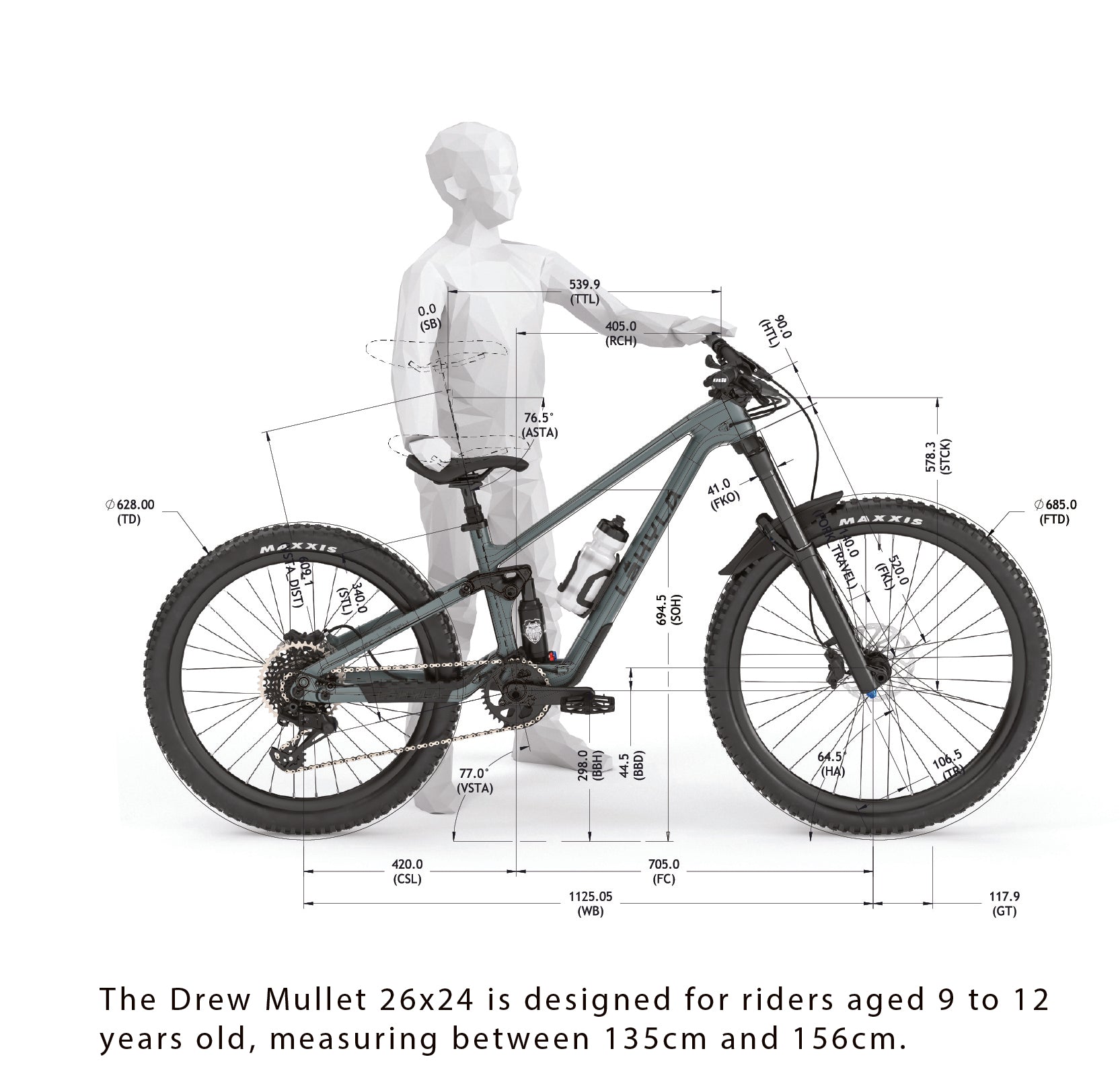

What size kid fits the Lahyla Drew Mullet 26x24?

It is designed for riders about 135 to 156 cm tall, usually 9 to 12 years old. Smaller riders (115 to 135 cm) should look at the Drew 24.

Why a mullet setup with a 26 inch front wheel?

The bigger 26 inch front wheel rolls over roots and rocks more easily and adds stability on steep descents, while the 24 inch rear keeps the bike short and playful for jumps and tight turns.

How much does the Drew Mullet weigh?

12.5 kg (27.5 lb) without pedals, light for a full carbon youth bike with 140 mm of travel and Maxxis Minion tires.

What do reviewers say?

The Bike Dads tested it with a 10 year old rider and wrote: “This is one of the best rear suspension designs/kinematics for kids we have tried.” Read the full review.

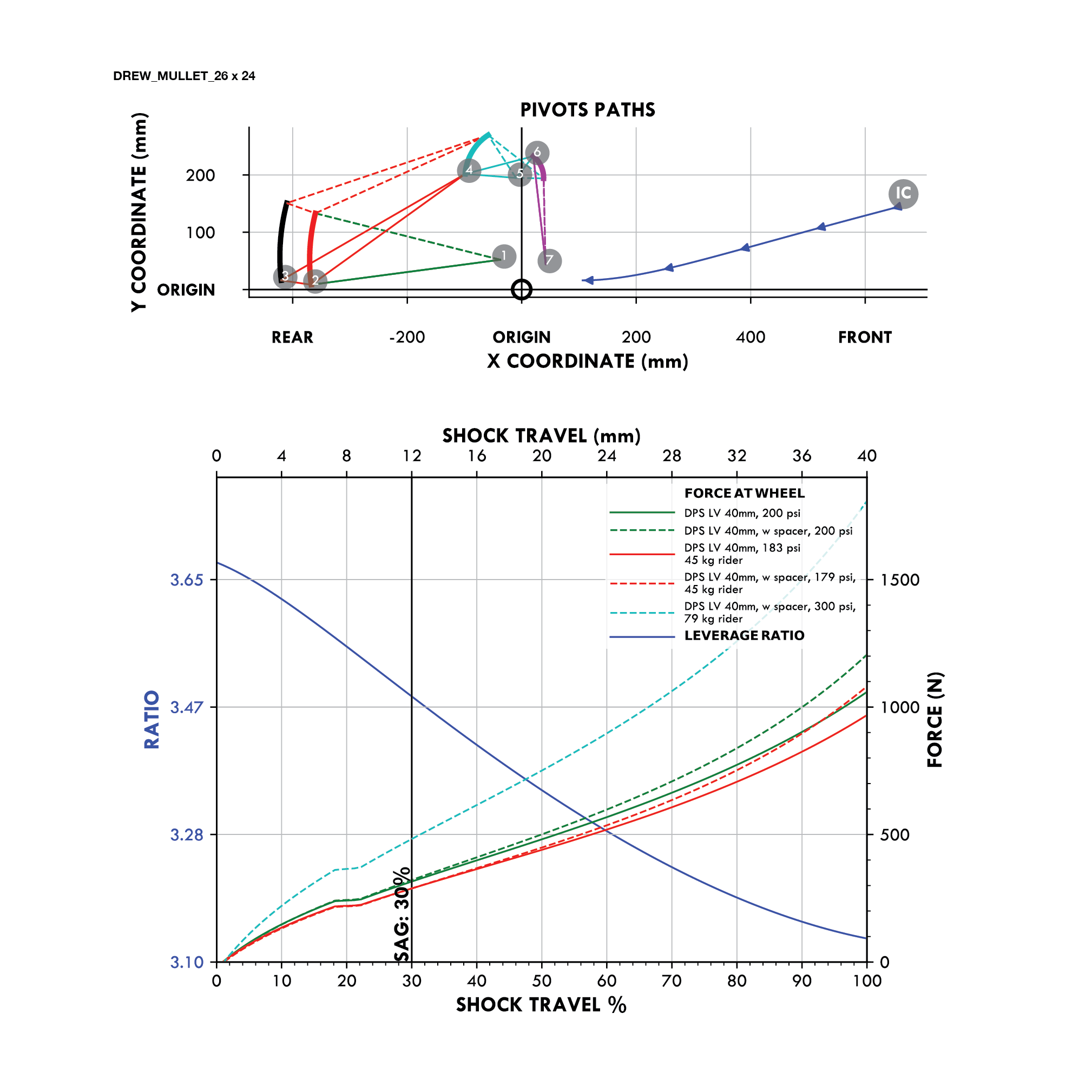

Can you tune the fork for a lighter rider?

Yes. Reviewers noted the fork ramps up near the end of its travel for light riders. B1keparts services the Lahyla fleet and can set up fork and shock for your child's weight before shipping. Chat with us or call (418) 570-2153.

Does it come with pedals and a dropper post?

Yes: pedals, a 120 mm dropper post, downtube and chainstay protection, internal cable routing guides and an ISCG05 chain guide mount.

Got the wrong items or it’s just not what you expected? No sweat! You can send it back within 30 days of delivery.

To be eligible for restocking, the product must also meet the following conditions:

  • The product must be in its original packaging without any price or promotional stickers.
  • The outer box must be in perfect reselling condition without any writings.
  • The product must be intact and in the same condition as when originally purchased, with no installation or use.
  • The product must not have been purchased at a clearance price.

Swaps

Need to swap out your item? Here’s how:

Speedy Exchange

Want your new item right away? Place a new order, and we’ll ship it before receiving the return. Your card will be charged for the new order, and we’ll refund the old one as soon as we get it back.

Standard Exchange

Send back the item you don’t want, and we’ll ship your new order once we receive the return. We’ll only charge (or refund) the difference in price.

Sale Items

Items on sale with a 20% discount or more are final sale and can’t be returned or exchanged. Consider selling these items locally, like on Kijiji.

Complete details here : https://www.b1keparts.com/policies/refund-policy

From Quebec, to your doorstep, expect a smooth ride with no surprise fees like duties or brokerage. We ship within 1 to 4 days. More than 80% of orders arrive in 2 days or less. Need it faster? Let us know, and we’ll pedal extra hard for express service.

For purchases of $149 and over with items weighing less than 25 lbs, shipping is free. For oversized items or items weighing between 25 and 100 lbs, an additional shipping fee will apply based on the specific case.

Features

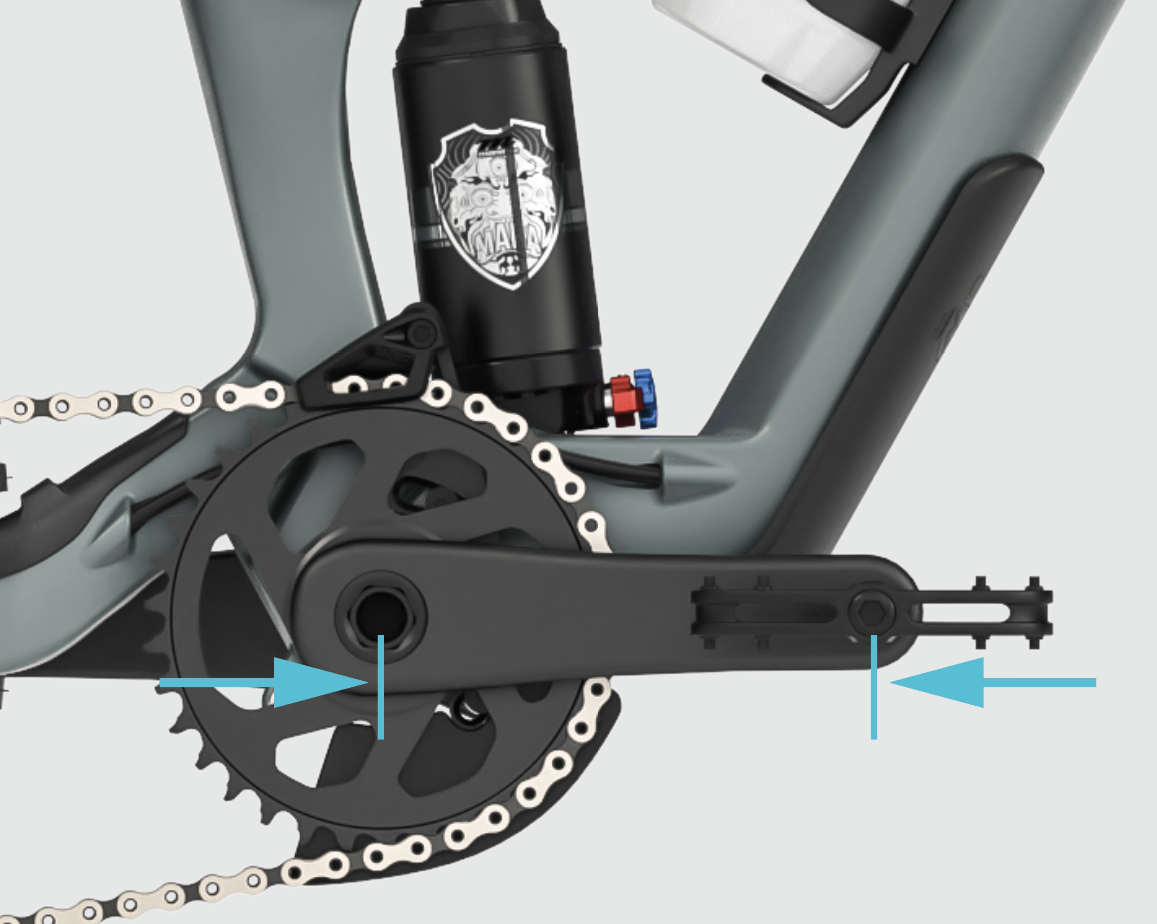

Lahyla Drew Mullet 26x24 : Shortest crank armsShortest crank arms
1

140 mm cranks, the shortest in the category, for more pedalling efficiency.

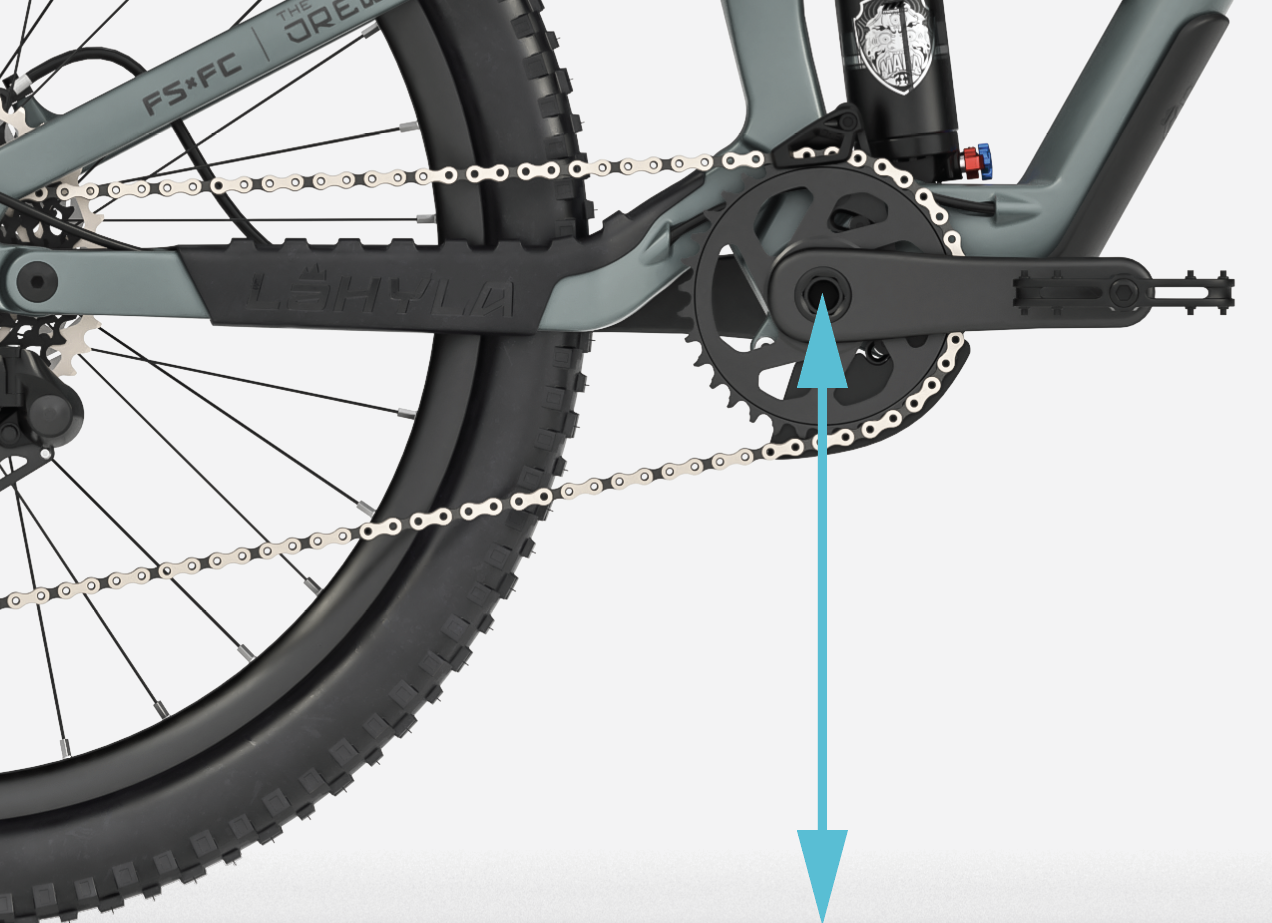

Lahyla Drew Mullet 26x24 : Lower centre of gravityLower centre of gravity
2

It is not only about making it easier for your child to put a foot down. A 26 cm bottom bracket lowers the centre of gravity for more stability and confidence, where many youth full suspension bikes sit around 31 cm.

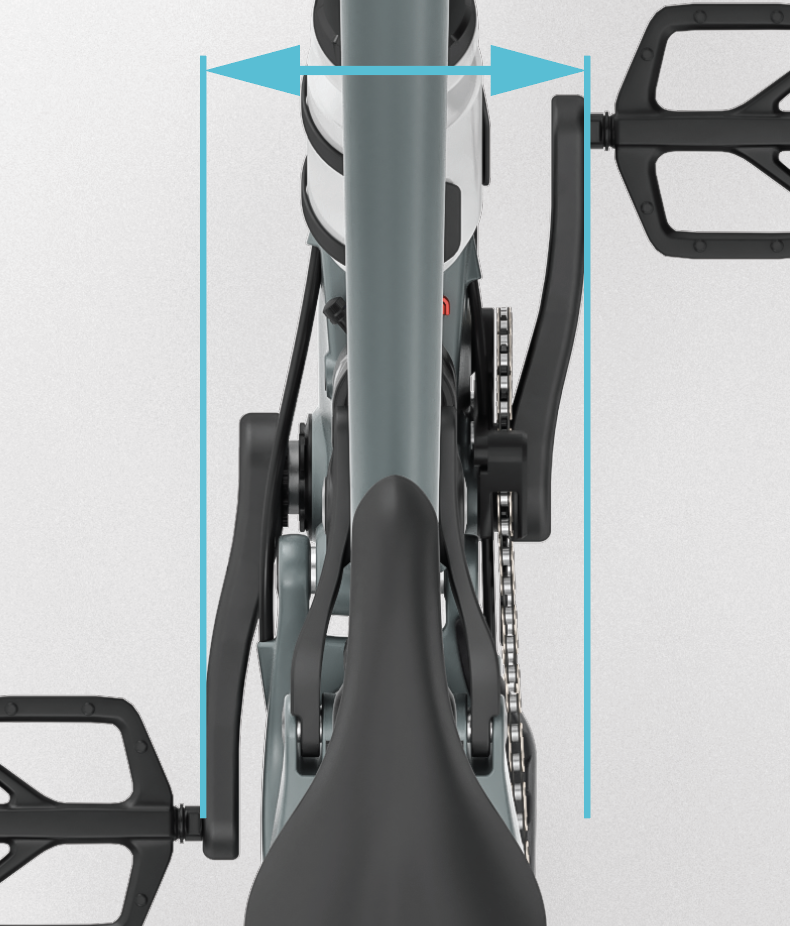

Lahyla Drew Mullet 26x24 : The narrowest Q-factorThe narrowest Q-factor
3

The pedal spacing (Q-factor) is 155 mm, compared with 175 mm or more on many youth full suspension bikes. It takes a specific chainstay design and tube geometry.

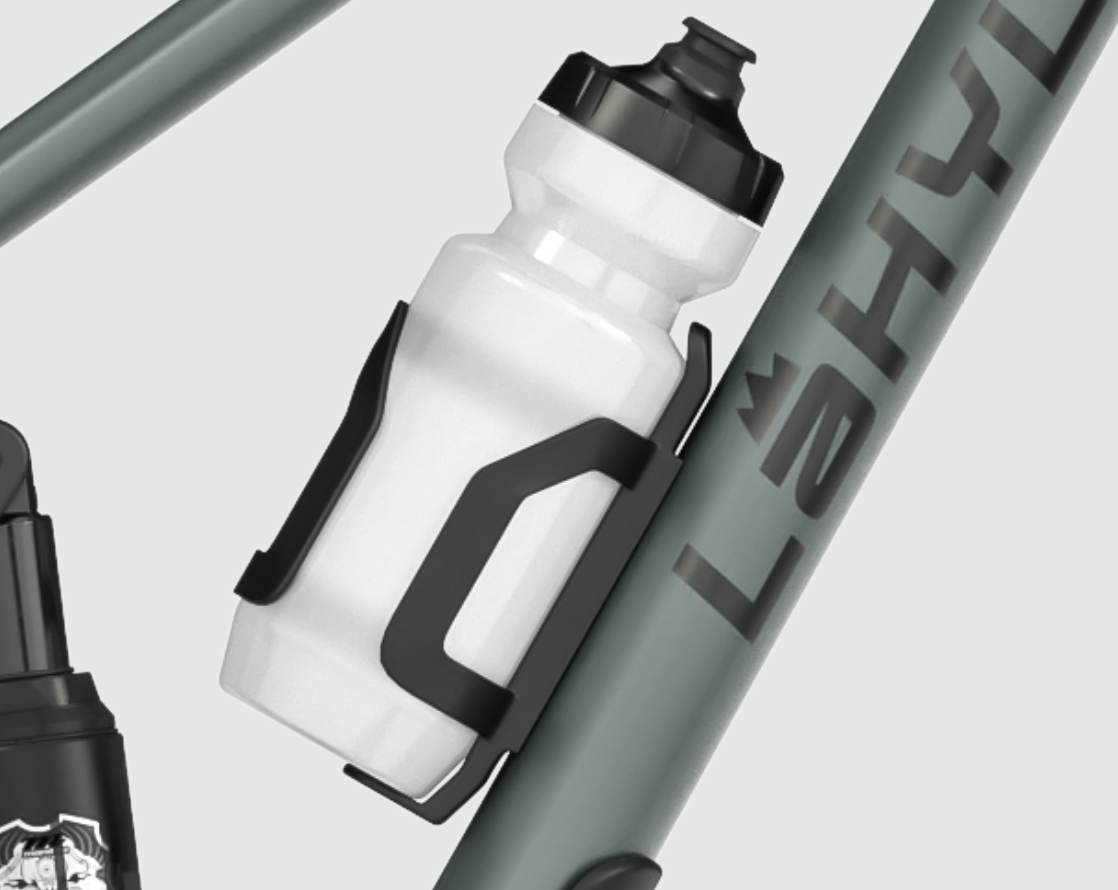

Lahyla Drew Mullet 26x24 : Bottle mountBottle mount
4

Hydration matters, and kids do not like wearing water packs. The best place for the water is the lowest point on the frame, for more stability and comfort.

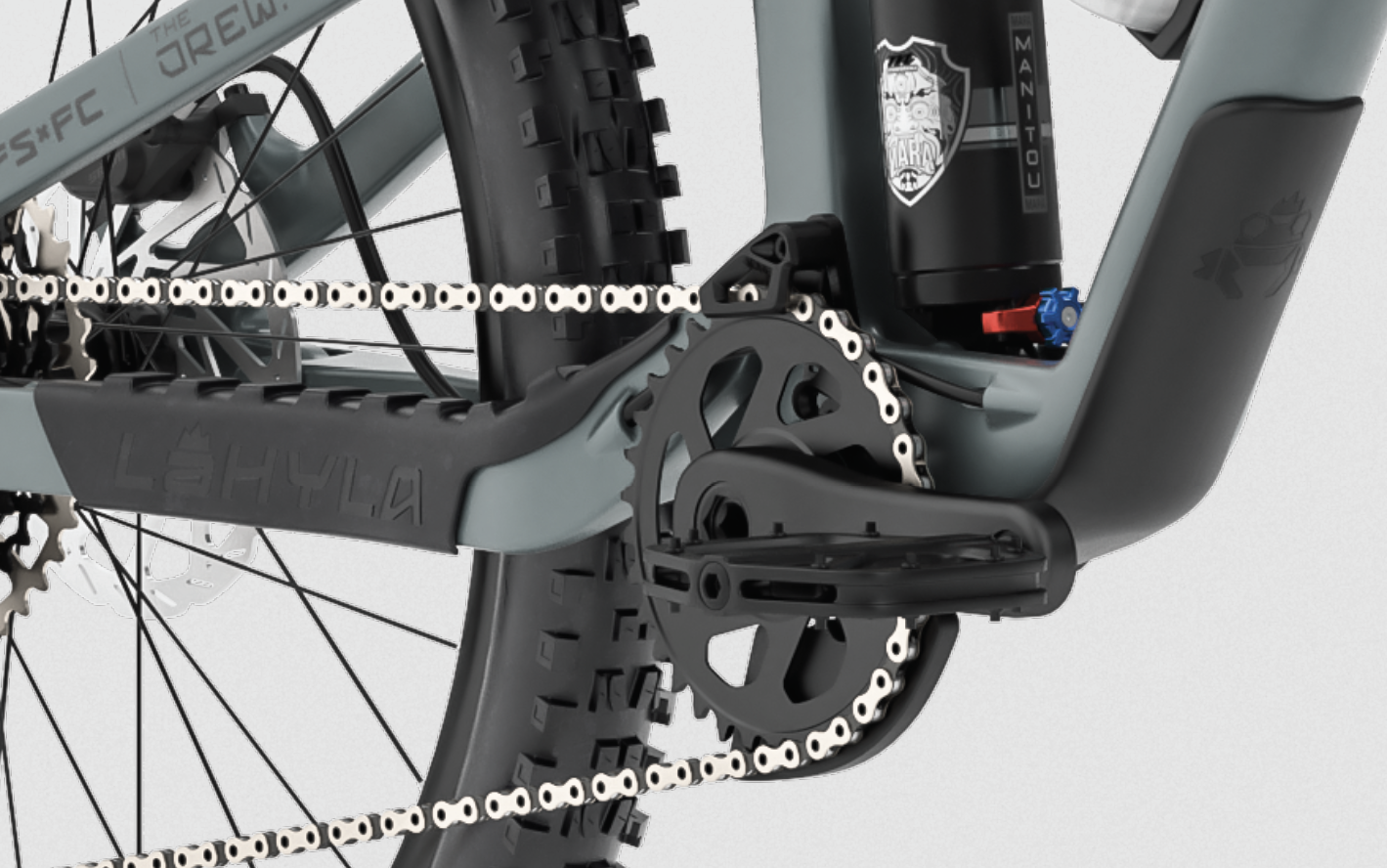

Lahyla Drew Mullet 26x24 : Ready to shredReady to shred
5

Fully equipped with youth specific parts: 120 mm dropper post, downtube and chainstay protection, internal cable routing guides, pedals and ISCG05 mount.

Lahyla Drew Mullet 26x24 : LightweightLightweight
6

Full carbon frame and 12.5 kg / 27.5 lb without pedals: among the lightest bikes in its category.
